Introduction
Camera module selection determines how a device sees, how much data it moves, and how much it costs to build. The global machine vision market is set to grow from USD 15.83 billion in 2025 to USD 23.63 billion by 2030, according to MarketsandMarkets. That growth is pulling more embedded teams into camera module decisions they used to skip.
A higher megapixel count sounds like a safer choice, but sensor size, lens quality, processor throughput, bandwidth, and storage all shape the outcome as much as pixel count does. This guide compares the 2MP camera module, the 5MP camera module, and the 8MP camera module across the factors that actually affect embedded vision performance.
Understanding Camera Resolution and Megapixels
The Megapixel count is the starting point for camera module selection, not the finish line.
A megapixel equals one million pixels, and it is calculated by multiplying the horizontal and vertical pixel dimensions of an image sensor. A 2MP sensor might output 1920×1080 pixels, a 5MP sensor commonly outputs 2592×1944 pixels, and an 8MP sensor often reaches 3840×2160 or higher. Resolution affects image quality by controlling how much detail a sensor can capture across a given field of view, which matters directly for tasks like reading text, identifying small defects, or recognizing objects at a distance.
Higher resolution images require more data and increase the burden on downstream storage systems, interface bandwidth, and image signal processors. Increasing the number of megapixels is not always beneficial. Increasing the pixel count on a small sensor shrinks the sensor’s individual pixels. With fewer and smaller pixels, the sensor collects less light and performs worse in low-light scenarios.
A poorly matched lens will not resolve the extra detail an 8MP sensor promises, wasting the resolution advantage entirely. Processing an 8MP frame stream in real time requires a processor with enough throughput to avoid frame drops, which changes the bill of materials for the entire product.
The right resolution depends not only on the application, lighting environment, and lens, but also on camera hardware design, since processor capability, interface bandwidth, and system architecture all influence overall imaging performance.
What Is a 2MP Camera Module?
A 2MP camera module is the baseline resolution used across cost-sensitive and bandwidth-limited embedded designs.
Resolution and Technical Specifications
A 2MP Module usually outputs 1920 x 1080 resolution which is full HD. This class of sensors usually has a smaller size ranging from 1/4-inch to 1/2.7-inch formats. Frame rates generally reach 30 to 60 fps at full resolution. Interfaces include MIPI CSI-2 and USB, both of which suit this lower data volume without requiring specialized processing hardware.
Advantages of a 2MP Camera Module
The cost of the 2MP camera module remains low with smaller sensors and ISP integration. The module requires lower bandwidth, allowing the use of lower-end processors with narrower CSI lanes.
The 2MP modules use less power than higher resolution modules. This makes the 2MP modules ideal for battery powered or thermally constrained applications. The sensor integration and development process is shortened because 2MP cameras are supported with mature drivers and reference designs.
Common Applications of 2MP Camera Modules
Typical security applications use 2MP camera modules because capturing detail of large areas is not as important as identification at a close range. Video conferencing devices also use 2MP camera modules because a Full HD output is enough for typical screen resolutions.
Door entry systems, badge readers, and other access control systems integrate a 2MP camera module in their systems for cost-efficient identity confirmation systems that don’t capture as much detail as a forensic-level image. Entry-level embedded devices that consist of budget dash cameras and straightforward monitoring devices rely heavily on these 2MP sensors. Smart home devices like video doorbells and indoor monitors use these camera modules for their home monitoring systems as their default resolution tier.
What Is a 5MP Camera Module?
A 5MP camera module sits in the middle tier, balancing image detail with manageable bandwidth and cost.
Resolution and Technical Specifications
A 5MP camera module typically has a resolution of 2592×1944 and has about 2.5 times the pixel count of a 2MP camera. Sensors of this variety are usually between 1/3.2-inch and 1/2.5-inch. Many 5MP sensors implement either a rolling or a global shutter depending on the application and how important motion blur control is. The main interface remains MIPI CSI-2, but some designs complement it with GMSL in order to achieve longer cable runs in industrial applications.
Advantages of a 5MP Camera Module
A 5 MP camera module offers better detail than a 2 MP camera and can assist with reading smaller labels and detecting minor irregularities on surfaces. A 5 MP camera can capture larger areas with a good quality image even after cropping. This is especially useful for inspection stations where a smaller area can be a region of interest.
5 MP camera modules consume less processing power than 8 MP modules. This means that mid-range embedded processors will be able to process images at the full 5 MP resolution without a drop in frame rate. The wider availability of global shutter options in this class also makes the 5MP camera module a better fit for moving parts on a production line.
Common Applications of 5MP Camera Modules
Industrial inspection systems use a 5MP camera module to detect defects that fall below the threshold a 2MP sensor can reliably catch. Deploying intelligent retail tech requires opting for 5MP resolution. Check-out cameras and shelf scanners need this resolution to track stock and read labels accurately.
Images taken by 5MP cameras are about 37.5% smaller than 8MP images. 5MP images provide high enough clarity to capture the images necessary for endoscopic devices and diagnostic imaging. That’s why 5MP camera modules are a common unit used in the devices.
Mid-range detail is sufficient for decision-making in navigation and object recognition. Therefore, robotics systems and platforms opt for 5MP sensors. For the same reason, assembly lines for electronics and automotive use 5MP camera modules for quality checks.
What Is an 8MP Camera Module?
An 8MP camera module is built for applications where fine detail, distance recognition, or AI-based analysis requires maximum image data.
Resolution and Technical Specifications
A camera module with 8MP will typically be able to output at 4K video resolution (3840×2160). Camara sensors with this type of resolution are typically 1/2.3-inch in size or larger so that they can keep their pixel sizes reasonable so that they are still as sensitive to light as possible.
The interfaces usually feature multiple lanes in MIPI CSI-2, and several designs with 8MP cameras use GMSL or even Ethernet transport for longer and more complex links. Processing this resolution in real time generally requires an image tuning and application processor capable of handling 4K throughput without frame skipping.
Build your next vision system with confidence.
Advantages of an 8MP Camera Module
AI vision systems that need pixel density to spot small or faraway objects can make use of the detail captured by an 8MP camera module. Higher resolution can increase confidence in object classification and detection in the downstream computer vision models. This is because the models can work with more pixels per object.
8MP camera sensors can also work with a dense field of view. Software can pick out several areas of interest at the same time. This can enable the use of zoned interests in a single 8MP camera’s field of view. This can also reduce the number of cameras in a vision AI system, which can be beneficial given the relatively higher cost of high MP sensors.
Common Applications of 8MP Camera Modules
AI vision systems utilize 8MP camera modules to give neural networks pixel density sufficient for precise object identification and classification. Many intelligent surveillance systems rely on 8MP resolution to detect and discern faces or license plates beyond the range and detail capability of 2MP and 5MP camera modules.
8MP sensors also support detection of obstacles encountered by autonomous robots and range mapping with greater accuracy of detected distances in conjunction with stereo or multi-camera systems. 8MP camera modules are also chosen for medical imaging systems to capture the fine details of tissues and the structures.
Automatic number plate recognition and other vision systems employed in intelligent transport systems to monitor and manage road traffic use 8MP resolution to view and read number plates and signs at a distance. 8MP resolution is also adopted by precision agriculture systems to capture a field view wide enough to assess the health of crops and unwanted pest damage.

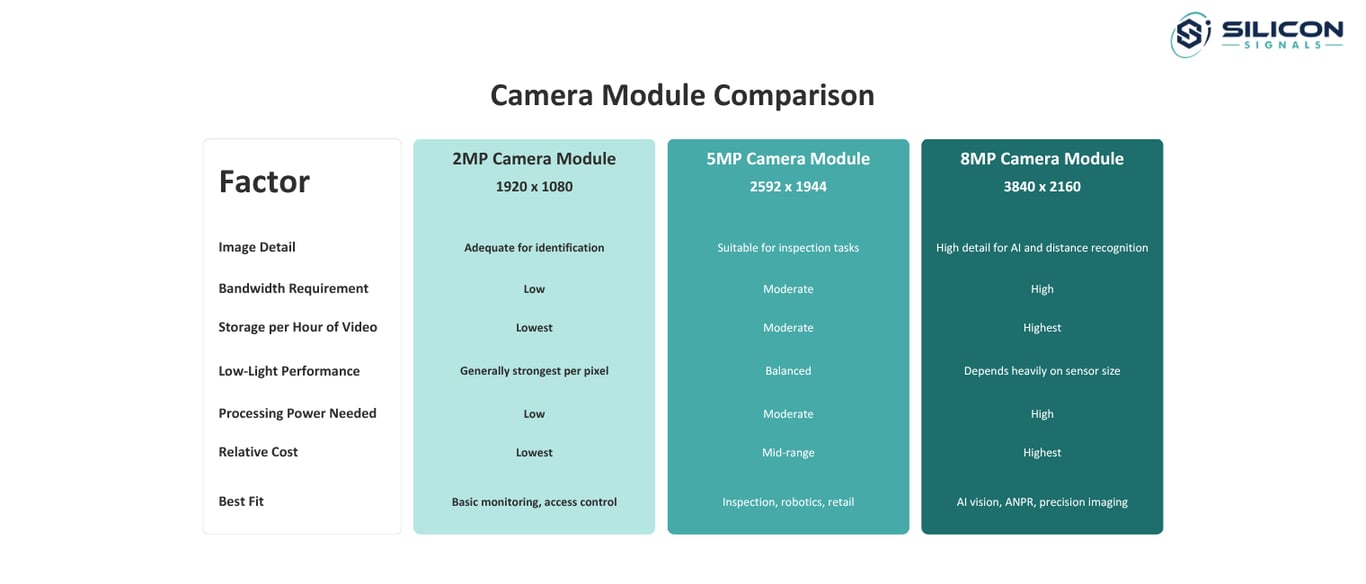

2MP vs 5MP vs 8MP Camera Module Comparison
Camera module selection ultimately comes down to matching resolution to the specific demands of bandwidth, lighting, processing, and budget.
Resolution Comparison
The 8MP camera module offers roughly four times the pixel count of a 2MP sensor and about 1.5 times that of a 5MP sensor, which directly expands the amount of detail available per frame.
Image Detail and Sharpness
A 2MP camera module resolves broad shapes and general identification well, a 5MP camera module adds enough sharpness for label reading and inspection, and an 8MP camera module resolves fine texture and distant detail that the other two miss.
Storage and Bandwidth Requirements
Storage and bandwidth scale roughly with pixel count, so an 8MP camera module can require close to four times the storage of a 2MP camera module for the same recording duration, which affects both onboard memory and network design.
Low-Light Performance
Low-light performance depends on pixel size more than pixel count, and a 2MP sensor with larger individual pixels often outperforms a densely packed 8MP sensor in dim conditions unless the 8MP module uses a correspondingly larger sensor format.
Processing Power Requirements
An 8MP camera module demands significantly more ISP and application processor throughput than a 2MP camera module, and underpowered processors will drop frames or fall back to reduced resolution when paired with high-megapixel sensors.
Cost Comparison
The cost of components increases with sensor size and resolution, along with processing hardware costs. As such, the 2MP camera module is the least expensive and the 8MP camera module is the most expensive of all sensor, lens, and board-level components.
Best Applications for Each Camera Module
Basic monitoring and access control scenarios are well served by a 2MP camera module. 5MP camera modules are appropriate for inspection and mid-range robotics. An 8MP camera module suits AI applications and recognition tasks performed at a longer distance.
Which Camera Module Should You Choose?
A 2MP camera module is ideal for accessing control systems, video conferencing, and basic smart home devices, as they are Full HD, comparatively cheaper, and need lesser bandwidth.
If an application needs more detail than offered by the 2MP camera module, consider a 5MP camera module. Use 5MP modules for applications like reading text, inspecting quality, and navigation in robotics, which require more detail than the 2MP modules, and less than 8MP bandwidth and processing.
For intelligent surveillance, ANPR, and precision farming, which need AI based detections for detail recognition of structures at long range, and fine detail, consider 8MP camera modules, if the system’s processor and network can accommodate them.
Before selecting the right camera module, it’s equally important to understand the difference between a camera module and a camera board. While the sensor resolution determines image quality, the hardware architecture affects integration, connectivity, and overall system design. Knowing both helps you choose the right camera solution for your application.
Not sure which camera resolution best fits your project?

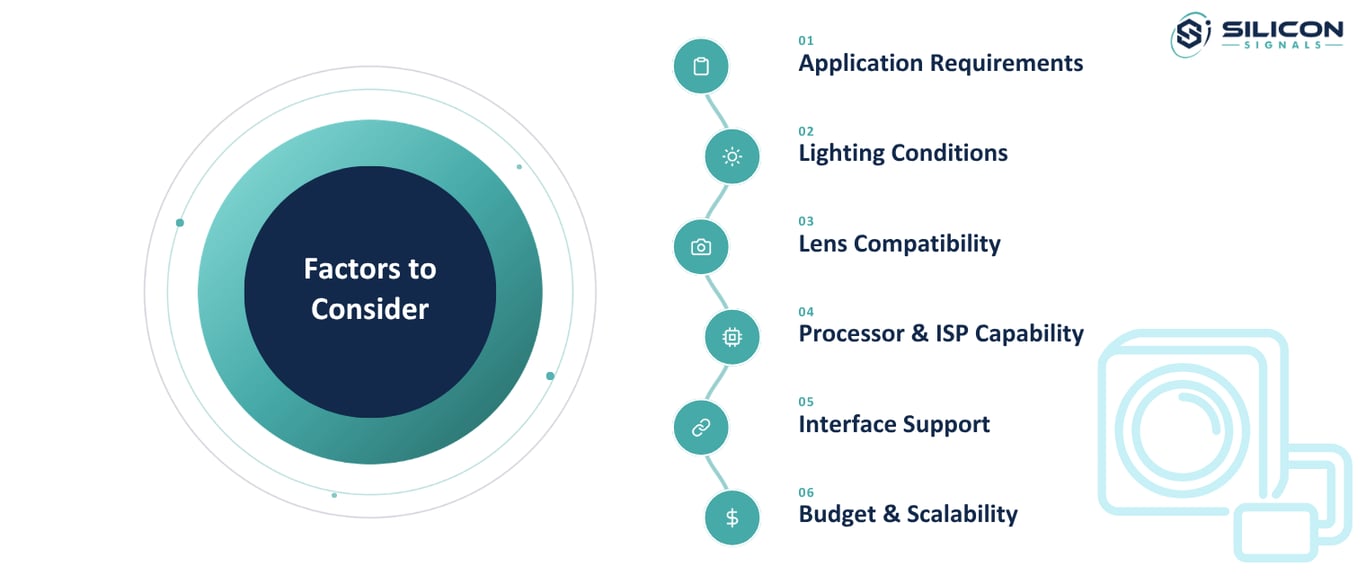

Factors to Consider Before Selecting a Camera Module
- Application Requirements The task itself sets the resolution floor, since identification at close range needs far less detail than recognition at a distance. Matching resolution to the actual requirement avoids overspending on hardware that outpaces the use case.
- Lighting Conditions Low-light environments favor larger pixels and lower megapixel density, since pixel size affects sensitivity more than raw resolution does. Bright, controlled environments give higher-resolution sensors more room to perform without sensitivity trade-offs.
- Lens Compatibility A high-resolution sensor cannot outperform a lens that lacks the matching optical resolving power. Camera module selection should always account for lens quality, since a mismatched lens wastes the sensor’s resolution advantage.
- Processor and ISP Capability Higher resolution sensors demand more from the image signal processor and application processor to maintain frame rate and avoid dropped frames. A processor sized for a 2MP camera module will typically struggle with sustained 8MP capture.
- Interface Support (MIPI CSI-2, USB, GMSL) MIPI CSI-2 fits most onboard configurations for all three resolution levels. USB is ideal for external or plug-and-play configurations. For longer cable runs in automotive and industrial GMSL is appropriate. As resolution increases, interface bandwidth must also increase avoid bottlenecks.
- Budget and Scalability The product development roadmap may use advanced AI features that require 8MP detail, so plan the scalability of the product to accommodate this need rather than limiting initial designs to 2MP or 5MP camera modules, which are often used due to budget constraints. Planning the interface and processor headroom early avoids a full redesign later.
Conclusion
Camera module selection comes down to matching resolution to the job, not chasing the highest megapixel number available. Basic monitoring and access applications can use 2MP camera modules, while inspection and mid-range robotics can have 5MP camera modules. 8MP camera modules can be used for AI vision and long-range recognition applications. Silicon Signals offers all three resolution camera modules and offers product teams help in choosing the right sensor, lens, and processor for their embedded vision application.
