Introduction
Most surveillance footage is never reviewed. Estimates from the security industry suggest that over 90% of recorded video goes unwatched, while incidents escalate in real time without detection. The failure is not hardware. It is architecture.
Traditional surveillance architectures push raw video to centralized servers for processing. That model breaks under the demands of modern infrastructure power grids, transit terminals, and industrial zones where milliseconds separate a contained incident from a cascading failure. Smart surveillance camera development was built to fix exactly this.
An edge AI camera does not wait for a server to decide what it saw. It runs inference locally, classifies objects, generates metadata, and pushes actionable events all within the device itself. But building a camera capable of this requires far more than bolting a neural network onto existing hardware. It requires coordinated engineering across optics, imaging sensors, signal processing pipelines, embedded AI accelerators, thermal design, and software stacks that operate without margin for failure.
This article explains how an AI camera development company builds these systems, from initial hardware specifications to validated field deployment, providing technical insights for engineers and product leaders who need to understand what separates functional surveillance hardware from production-grade intelligent vision.
Why Smart Surveillance Camera Development Starts at the Sensor Level
The sensor is the foundation on which every downstream AI decision rests. An edge AI camera asked to detect a person in partial shadow at 3 a.m., sixty meters from the lens, must first produce an image where that person is distinguishable. If the sensor fails at image capture, no inference engine recovers the data.
Sensor selection in smart surveillance camera development involves tradeoffs across four primary variables: resolution, pixel size, dynamic range, and spectral sensitivity. Higher resolution supports detection at distance, but larger arrays generate more data, which strains onboard processing pipelines. Larger individual pixels capture more light per unit area, which improves low-light performance, but at the expense of sensor compactness. No single configuration optimizes all variables simultaneously. Engineering teams working on edge AI cameras make deliberate choices based on deployment environment and detection requirements.
For industrial surveillance substations, ports, and enclosed transit corridors high dynamic range (HDR) sensors are non-negotiable. A substation perimeter camera may face a scene where one zone is in direct sunlight and another is in the shadow of a transformer housing. Standard sensors clip highlights and crush shadows. HDR sensors use multi-exposure capture or advanced pixel architectures to retain detail across both zones in a single frame. This is not a visual preference. It determines whether an intrusion event generates a valid detection or produces a false negative at the exact moment it matters.
Near-infrared (NIR) sensitivity adds a parallel capability. Cameras designed for tunnels, offshore decks, and enclosed infrastructure spaces use NIR illumination that is invisible to the human eye but fully usable by sensors with the correct spectral response. This extends effective surveillance coverage into environments where conventional low-light cameras produce unusable footage.
An AI camera development company selects and qualifies sensors against the specific photometric conditions of the target deployment. This includes simulation under worst-case lighting scenarios during hardware bring-up, not after.
Building an AI-powered surveillance product?

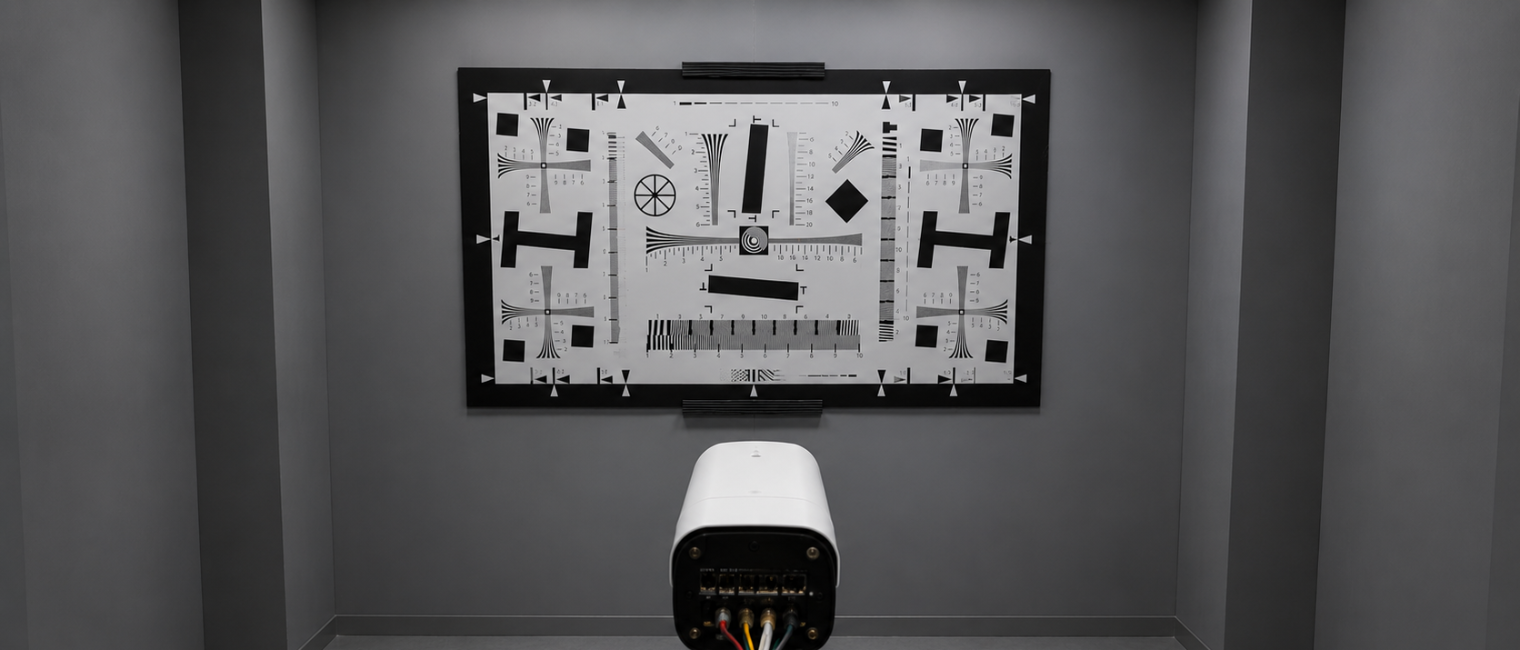

Why Is ISP Tuning Critical in Smart Surveillance Camera Development?
Between the sensor and the AI inference engine sits the image signal processing (ISP) pipeline. This is where raw photon data becomes a usable image and where most camera development teams underestimate the engineering investment required.
The ISP handles functions such as noise reduction, demosaicing, white balance, tone mapping, lens distortion correction, and sharpening. Each stage has direct consequences for AI inference accuracy. Excessive noise suppression removes fine texture that object detection models use to distinguish material types. Aggressive sharpening introduces edge artifacts that corrupt bounding box precision. Miscalibrated white balance skews color channels that classification models rely on for attribute detection.
Smart surveillance camera development at production quality requires ISP tuning as a distinct engineering discipline. Tuning parameters are not universally transferable to the ISP configuration optimized for a coastal port camera operating under consistent fog will not work correctly on a desert substation camera facing intense midday glare and thermal shimmer. An AI camera development company builds separate tuning profiles for each optical and environmental condition and validates each profile against representative image datasets before AI model integration begins.
The ISP also directly affects compute load downstream. A well-tuned pipeline delivers clean, consistent input that allows inference engines to operate at lower confidence thresholds with fewer false positives. A poorly tuned pipeline forces AI models to compensate for imaging artifacts, which increases false alert rates and degrades operator trust in the system.
What Hardware Components Are Required to Build an Edge AI Camera?
Local inference is the primary feature of an edge AI camera – running vision models locally instead of sending video streams to remote servers for analysis. It needs an AI engine on board that can perform inferencing on neural networks in real time with acceptable power consumption.
Current edge AI cameras include SoC devices that contain both an application processor and a specialized chip for performing artificial intelligence operations (such as an NPU or DSP). The selection of such an SoC is guided by criteria including the throughput of the processor (in tera-operations per second or TOPS), framework support for running models, and existing software ecosystem.
Hardware bring-up involves testing the entire pipeline: sensor-to-ISP, ISP outputs to NPU/DSP inputs, and then back to application layer for creating events. In all these transitions, there may be delays and data loss risks. An AI camera manufacturer performs timing analysis of the pipeline to ensure that the camera works reliably even under worst-case conditions.
Thermal management is a constraint that becomes critical during design. Edge AI accelerators generate heat during sustained inference. Cameras deployed outdoors in direct sunlight, or inside enclosed enclosures in industrial environments, accumulate thermal load from both compute and environment. Designs that do not model this interaction produce cameras that throttle inference throughput or fail prematurely in field conditions. Thermal simulation, validated by physical testing in environmental chambers, is standard practice in smart surveillance camera development at production quality.
The PCB layout, power delivery network, connector selection, and mechanical housing all influence system reliability at the field deployment level. These are not secondary concerns. A camera that performs correctly in a lab but fails within six months of installation under vibration, humidity cycling, or temperature extremes does not meet the requirements of critical infrastructure surveillance.
How Are AI Models Integrated into Edge AI Surveillance Cameras?
Selecting or training AI models for edge AI cameras requires understanding the constraints of the deployment platform before the model architecture is chosen. A model that runs efficiently on a data center for GPU may be entirely impractical on a 4 TOPS edge accelerator. Smart surveillance camera development for embedded platforms requires model design to occur in parallel with hardware selection, not after it.
Object detection models used in surveillance cameras must balance detection accuracy against inference latency and model size. Lightweight architectures based on MobileNet, EfficientDet, or YOLO variants are common starting points for edge AI cameras. These models are further optimized through quantization, converting 32-bit floating-point weights to 8-bit integers which reduces both memory footprint and inference time. Quantization introduces a small accuracy penalty, and production deployments require validation testing to confirm that the quantized model maintains acceptable performance on the target detection classes.
Model training data quality has a direct effect on field performance. A smart surveillance camera intended to detect hard hat compliance at an oil and gas facility requires training data that includes workers photographed under the lighting conditions, occlusion patterns, and viewpoint angles representative of the deployment site. Models trained on generic datasets underperform in specialized environments. An AI camera development company working on domain-specific surveillance systems builds or curates application-specific training data as part of the development program.
Post-processing logic governs how inference outputs are converted into events. Raw model outputs are bounding boxes and confidence scores. The post-processing layer applies non-maximum suppression, minimum confidence thresholds, zone-based filtering, and object tracking logic to produce clean, actionable alerts. This layer requires careful calibration thresholds that are too permissive to generate false alerts that operators learn to ignore. Thresholds that are too restrictive miss real events. Calibration is performed against representative field data before system deployment.
Connectivity, Data Management, and Integration Architecture
Detection of accuracy means little if the camera cannot deliver events to the right systems at the right time. Connectivity is not an afterthought in smart surveillance camera development. It shapes how useful the camera actually is once deployed.
Infrastructure sites connect edge AI cameras through wired Ethernet, fiber runs, or site-specific wireless links. The choice depends on physical topology, cable routing constraints, and latency requirements. Onboard flash storage gives cameras a local buffer, so detection events and associated video clips are retained during network interruptions and uploaded once connectivity restores. This matters in remote substations and port terminals where network reliability varies.
Structured metadata is where the long-term value compounds. Each detection event carries object type, confidence score, bounding box coordinates, zone tags, and a timestamp. Operators can query that data with specific filters; every instance of a person crossing zone boundary 4 between midnight and 4 a.m. over the past month; and retrieve relevant clips within seconds. That capability changes how investigations and compliance audits are conducted.
Security architecture for storing footage and event data is built from the start. Video streams and stored clips are encrypted in transit and at rest. Exported evidence files carry access controls and digital signatures. These are not features added before launching. An AI camera development company working on infrastructure-grade systems designs the chain-of-custody requirements into the architecture before the first line of firmware is written.
Need a custom AI surveillance camera for your application?
Validation, Environmental Testing, and Field Qualification
When a hardware design is complete, real stress testing begins. This is the phase that separates a camera that works in a lab from one that holds up in a substation yard through three winters. For smart surveillance camera development, validation is not a final checkbox; it runs in parallel with design and catches problems early enough to fix them cheaply.
Optical qualification comes first. The full imaging chain sensor, lens, and ISP together are tested under controlled photometric conditions. Engineers measure resolution at the distances the camera will be asked to cover, characterize dynamic range under split-lighting scenarios, and verify NIR performance in darkness. If any result falls outside specification, that triggers a hardware or tuning revision before the AI pipeline is touched.
AI model validation follows. The detection pipeline runs against a held-out image and video dataset built from footage representative of the target deployment environment. Precision, recall, and false positive rates are all tracked against thresholds set at the start of the program. Numbers below target go back to the team for model retraining or post-processing adjustment does not forward to production.
Environmental testing is where mechanical and electrical reliability is verified. Cameras get cycled through thermal chambers, humidity enclosures, vibration rigs, and ingress protection tests. Outdoor infrastructure cameras are typically qualified to IP66 or IP67 ratings and validated across the full operating temperature range the deployment site will see. An AI camera development company that bypasses this work ships cameras that look fine at first installation and degrade quietly over the following year.
Long-term reliability testing runs units under sustained stress thermal cycling, voltage variation, and continuous inference load; to expose failure modes that only surface over time. Power delivery instability under load and thermal throttling under sustained inference are two issues that rarely appear in bench testing but cause real problems six months into deployment. Catching them before production is the point.

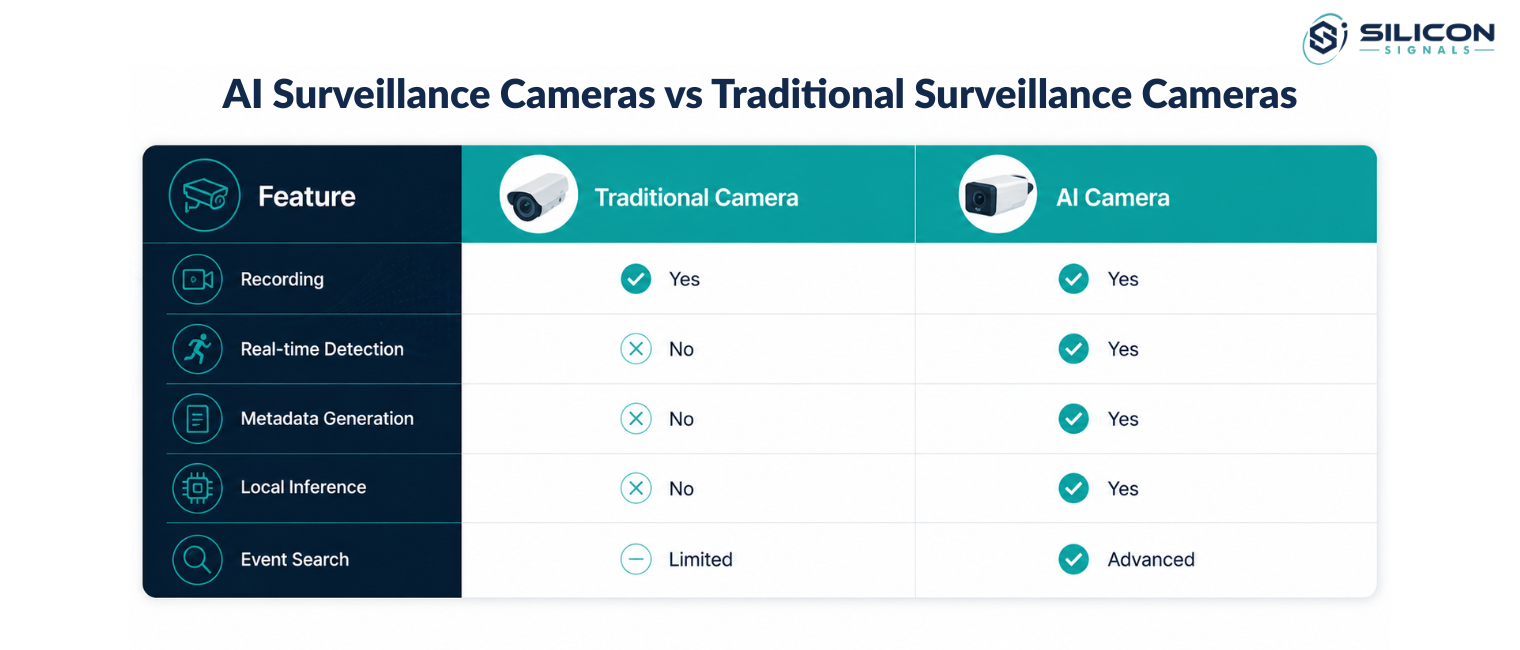

AI Surveillance Cameras vs Traditional Surveillance Cameras: What’s the Difference?
Conclusion
Building an edge AI camera that performs reliably in critical infrastructure environments requires coordinated engineering across sensor physics, imaging signal processing, embedded AI acceleration, mechanical design, software integration, and field validation. Each layer depends on the ones below it. Decisions made at the sensor selection stage propagate through every subsequent engineering phase.
Smart surveillance camera development, at production quality, is not a software integration project. It is a full-stack hardware and software engineering program, executed against a defined set of environmental and performance requirements, validated through structured testing before any unit reaches deployment.
