Introduction
IP camera hardware and firmware are different sides of the same integrated system. If a design team doesn’t think about IP cameras this way, image quality and network stability suffer, and so does the equipment’s long-term reliability. Fortune Business Insights predicts that hardware will represent 62.24% of the global IP camera market by 2026 due to the market’s reliance on hardware components like sensors, lenses, and connectivity. That hardware delivers its full value only when the camera firmware uses the available processing and imaging capabilities properly.
What Is the Relationship Between IP Camera Hardware and Firmware?
IP camera hardware provides physical processing and imaging functions. Each sensor, image signal processor, network chip, and storage controller has a specific role.
Firmware decides how these components are used and how they work together. The functionality of the hardware and firmware interface decides how a camera behaves after it is used in a real-world situation, whether it is in a retail store, on the highway, or on a factory floor.
This connection becomes even more important when building IP cameras for commercial, industrial, or security applications. A camera may have a high-resolution sensor and a powerful processor, but it still needs well-designed firmware to manage video capture, image processing, storage, networking, and system recovery.
Hardware Provides the Capability, Firmware Controls It
A processor may support hardware-accelerated encoding, but firmware must control it to make that capability useful. Poor firmware can leave much of that capability unused. Firmware must manage the complete data path for the IP camera hardware to deliver that performance. Hardware without firmware control is wasted potential.
Why Hardware-Firmware Compatibility Matters
Although firmware can be changed more easily than hardware, compatibility problems can cause long boot times, inconsistent exposure, and unstable streaming.
Teams often spend too much time solving compatibility problems after the hardware has already been selected, leaving firmware as the only way to work around controller limitations.
Building an IP camera where hardware and firmware need to work as one?

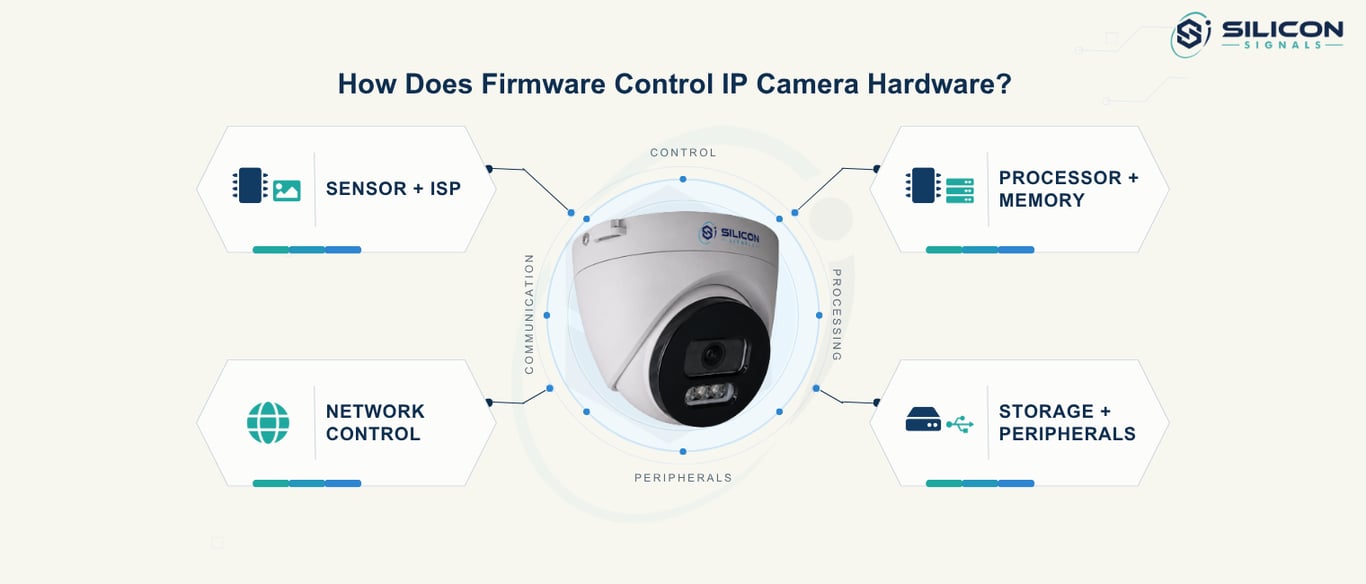

How Does Firmware Control IP Camera Hardware?
Camera firmware shapes the customer experience with the hardware. It manages sensor and ISP control, memory and processor management, network interface control, and storage and peripheral management. This relationship is explained further in embedded firmware for ISP in camera systems, where firmware acts as the control layer that makes the ISP adaptable and reliable in real-world products.
Sensor and ISP Control
Firmware manages exposure, gain, and white balance together with the image signal processor. It also determines how the pipeline should respond to rapidly changing light or heavily backlit scenes.
Processor and Memory Management
Every IP camera has a fixed amount of memory and processing capability. Firmware must distribute the available processing power between image processing, video encoding, storage, and networking. Poorly distributed firmware leads to lagging or dropped frames even with plenty of processing capability.
Network Interface Control
Firmware has a significant role in network interface control in that it manages the connection negotiation and recovery protocols. This is one of the areas where firmware and hardware interact most closely, and network instability is often the first problem an installer notices.
Storage and Peripheral Management
Local storage, audio in and out, and other interfaces and controls rely on firmware in order to function. A camera with great storage will perform badly if the firmware is unable to manage continuous recording.
How Does Image Data Move Through an IP Camera?
Understanding the data path clarifies why firmware decisions at each stage carry weight far beyond that single step.
From Image Sensor to ISP
Firmware at this step configures the timing of the sensor and the readout mode. The ISP then processes the data, and the firmware must ensure that timing remains synchronized and artifacts are avoided.
From ISP to Video Encoder
After the ISP has done its corrections to the processed frames, firmware sets the parameters of the encoder, such as the bitrate mode, the key frame interval, and the IP compression profile. These parameters determine how much bandwidth the stream uses.
From Encoder to Network Stream
Encoded frames are packaged and transmitted according to the network protocol the firmware supports, whether that is RTSP, ONVIF, or a proprietary transport. Any mismatch here creates buffering or dropped connections on the receiving end.
Where Firmware Controls the Data Pipeline
Firmware synchronizes frame buffers and encoders and manages timestamps and live transport of data over networks. Imbalances among these elements result in poor-quality video, including delayed video, missing frames, and buffering.

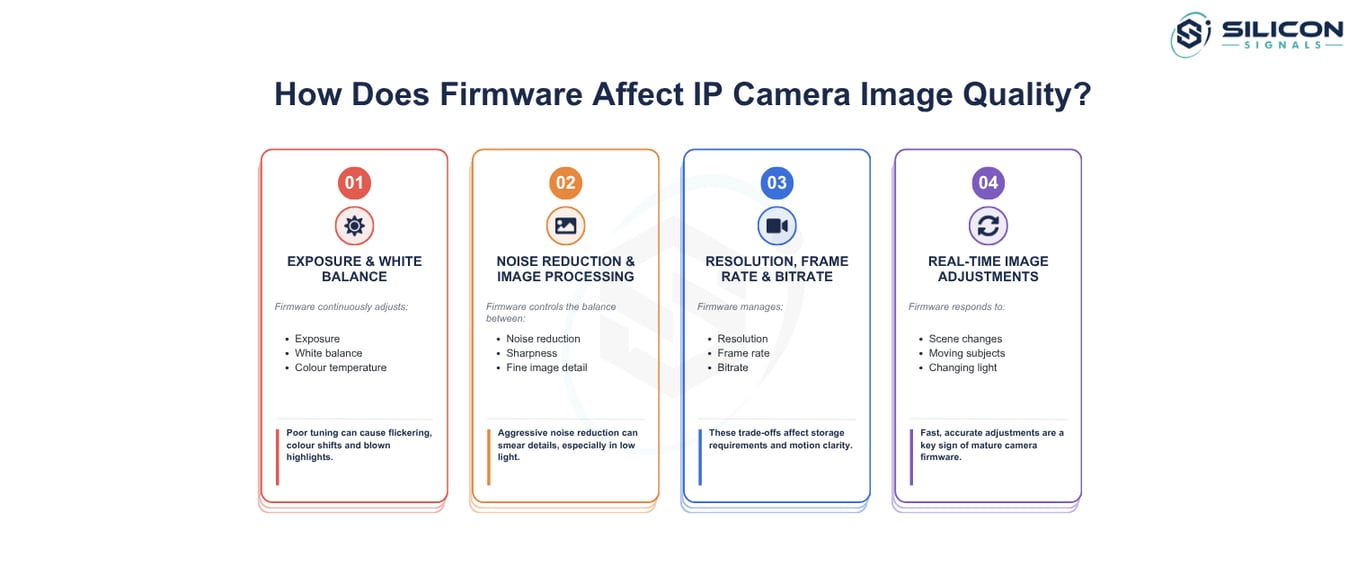

How Does Firmware Affect IP Camera Image Quality?
Two cameras with identical sensors can produce noticeably different images purely based on firmware tuning.
Exposure and White Balance Control
Firmware contains algorithms that analyze the scene and adjust exposure and color temperature. Poorly designed algorithms can cause flickering, color shifts, and blown highlights, even if the sensor is in good working condition.
Noise Reduction and Image Processing
Noise reduction involves a trade-off between a clean image and a detailed image. Firmware that applies too much noise reduction can smear fine details, especially in low light. This is a common problem when budget IP camera development leaves little time for image tuning.
Resolution, Frame Rate, and Bitrate
Firmware manages the reasonable trade-offs of resolution, frame rate, and bitrate according to the available resources. These trade-offs impact the cost of storage and the clarity of video during motion.
Real-Time Image Adjustments
Scene changes, moving subjects, and shifting light all require firmware to recalculate settings on the fly. The speed and accuracy of these real-time adjustments are clear signs of mature camera firmware engineering.
What Happens When IP Camera Hardware and Firmware Are Poorly Integrated?
Poor integration between IP camera hardware and firmware produces a recognizable set of symptoms that field technicians encounter repeatedly.
Unstable Video and Frame Drops
Frame drops often trace back to firmware failing to manage buffer timing correctly, not to a weak sensor or processor. The hardware may be fully capable of a stable stream that firmware simply is not delivering.
Slow Camera Response
In PTZ cameras, slow boot times, delayed configuration changes, and slow pan, tilt, or zoom movements may be caused by poorly designed firmware rather than insufficient hardware.
Excessive CPU or Memory Usage
Firmware failures can cause performance to decline gradually over several days, eventually forcing the camera to reboot. This often happens when firmware has not been stress-tested over long periods.
Network and Streaming Issues
These mainly consist of connections dropping or becoming inconsistent, authentication issues, and missing or unexpected frames. They can result from poorly implemented network protocols, even when the network interface chip is working correctly.
Unexpected Hardware Behavior
Unexplained sensor behavior, inconsistent IR-filter operation, and erratic motor movement may be caused by firmware, although hardware and mechanical faults should also be checked. Hardware has no decision-making capability and no behavior that can be unexpected.
How Does the Hardware-Firmware Interface Affect Camera Performance?
The hardware–firmware interface is where many of the camera’s real performance limits are set.
Drivers as the Link Between Hardware and Firmware
Drivers are programs that allow firmware to communicate with underlying hardware. Drivers that are poorly written can negate the benefits of well-written firmware.
Memory and Processing Constraints
All embedded camera systems have defined memory and processing limitations. Firmware must work within these limits without making the camera slow or unresponsive. This requires careful prioritization rather than adding as many features as possible.
Real-Time Performance Requirements
Video processing is a real-time process. If firmware takes too long to execute, latency or frame drops happen. This is why a video processing unit needs both high processing power and strict timeliness.
Hardware Acceleration and Firmware Optimization
Video processing requires firmware capable of meeting real-time constraints. Delays in firmware execution can increase latency or reduce the quality of video processing.
Planning your next IP camera?
How Should OEMs Evaluate IP Camera Hardware and Firmware Together?
Evaluating IP camera hardware and firmware separately gives an incomplete picture of how a product will actually perform.
Check Feature Support at Both Layers
This is especially important when evaluating embedded vision camera modules, where sensor, interface, processor, and firmware compatibility must be considered together. OEMs should confirm that advertised hardware capabilities have corresponding firmware functions before finalizing a design.
Evaluate Performance Under Real Workloads
A lab-bench test does not show how limited bandwidth, changing lighting, and continuous operation will stress the system. These integration issues often appear only during more realistic testing.
Verify Hardware-Dependent Firmware Functions
Advanced noise reduction and other hardware-dependent firmware features should be tested early, so the IP camera does not require repeated redesign cycles later.
Consider Long-Term Firmware Maintainability
Hardware ships once, but camera firmware needs updates for years after deployment. OEMs should evaluate how maintainable the firmware codebase is, since poor structure here creates ongoing support costs long after the hardware design is finalized.
Conclusion
Camera performance is decided by how well hardware and firmware are engineered together, not by either one in isolation. Silicon Signals provides camera design engineering services that align hardware selection with firmware architecture from the earliest design stage. Teams building their next IP camera platform can discuss the integration strategy with Silicon Signals before hardware decisions are locked in.
