Introduction
A traditional surveillance camera captures light and stores it. An Edge AI camera captures light, processes it, interprets it, and acts on it, all before a single frame reaches the cloud. That distinction defines the entire shift happening in physical security infrastructure right now. According to a 2023 IHS Markit report, over 1 billion surveillance cameras are deployed globally, yet fewer than 15 percent of them perform any meaningful on-device intelligence. The gap between what surveillance hardware can do and what most deployments actually use represents one of the most significant engineering and business opportunities in the embedded systems space today. Understanding how surveillance cameras work, from the physics of the sensor through the image signal processor and into the AI inference engine, is no longer just a hardware question. It is a product strategy question.
The IP Camera Working Principle

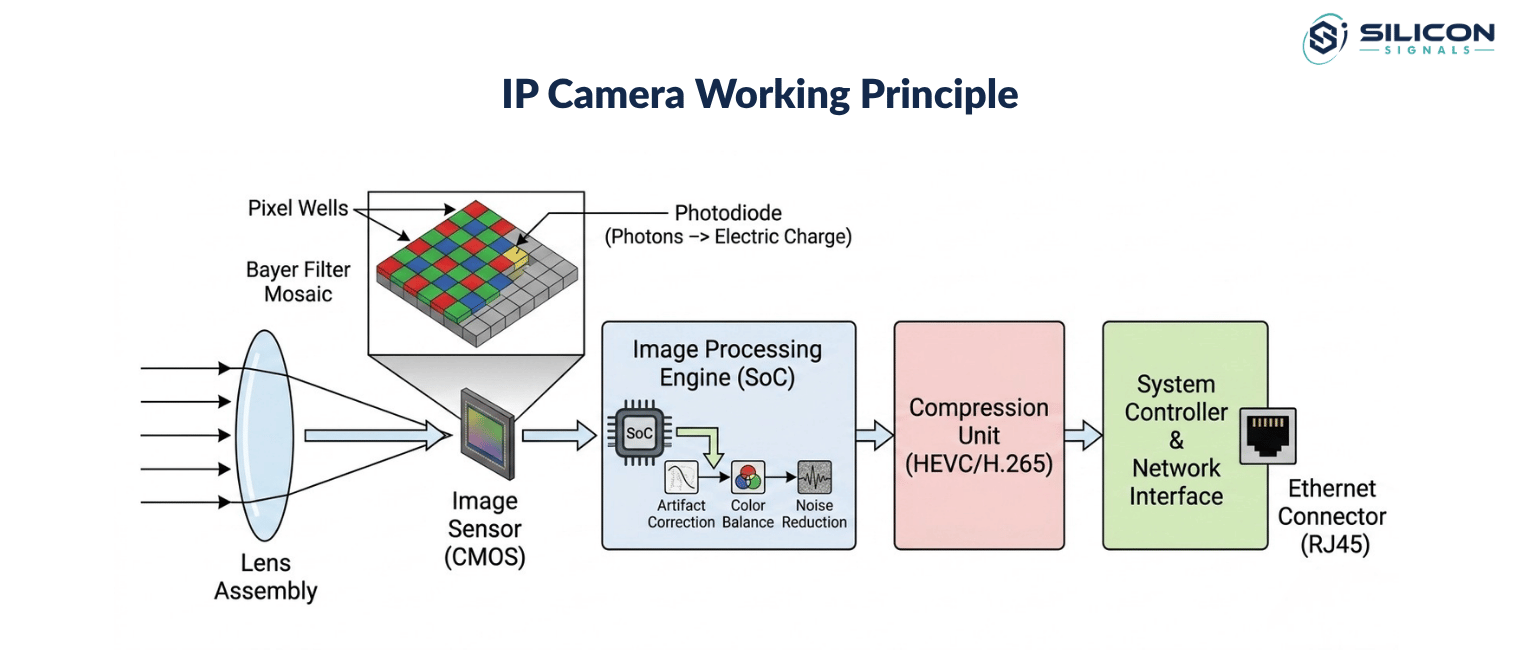

The camera working principle begins with the lens. Light entering through the lens aperture gets focused onto an image sensor, which is either a CMOS or CCD array. Photodiodes are present at every location on the sensor chip, which is responsible for the conversion of photons into an electric charge proportional to the strength of incident light on that pixel. This accumulated electric charge from the sensor is then output row-by-row in the form of an analog signal, which is then digitized using an analog-to-digital converter.
The modern day surveillance cameras rely solely on CMOS technology owing to their lower power requirements, faster readout speeds, and built-in signal processing capabilities. Four megapixels worth of numbers denoting individual pixel’s brightness levels would constitute an example of raw data obtained through 4MP CMOS sensor. At 30 frames per second, a single camera generates approximately 360 megapixels of raw data every second. None of that data is usable in its raw form.
The sensor captures light through a Bayer filter mosaic, a color filter array that places red, green, and blue filters over individual pixels in a checkerboard pattern. Because each pixel records only one color channel, every pixel in the raw output is incomplete. The green channel gets double the sampling frequency of red and blue because human vision is most sensitive to green wavelengths. This is the starting point of the image processing pipeline, and it already contains artifacts, color imbalances, and noise that the system must correct before the image becomes interpretable.
Building a Smart Surveillance Camera Product?
The Image Processing Pipeline, Turning Raw Data Into Actionable Footage
The image processing pipeline is the sequence of computational operations that transforms raw sensor output into a clean, color-accurate, detail-rich video stream. Every surveillance camera runs some version of this pipeline, but the quality of each stage and the hardware executing it determines whether the resulting footage is forensically useful or operationally useless.
Demosaicing and Color Reconstruction
Demosaicing is the first stage of the image processing pipeline. It reconstructs full-color pixel values from the Bayer-filtered raw data by interpolating the missing color channels from neighboring pixels. A naive nearest-neighbor interpolation produces visible color artifacts, particularly at edges and in high-frequency textures. Advanced demosaicing algorithms use directional interpolation and frequency-domain analysis to minimize zipper artifacts and false color. In surveillance applications, poor demosaicing manifests as color fringing around license plates, false hues on clothing, and blurred fine text, each of which directly reduces the evidentiary value of footage.
Noise Reduction
Every image sensor generates noise. Thermal noise arises from the random motion of electrons in the silicon substrate. Shot noise comes from the statistical variation in photon arrival rates. Read noise arises when there is an analog-to-digital conversion. In dim light, where the signal-to-noise ratio falls, noise dominates, hiding details that need to be captured by the surveillance system.
In cameras, the ISP uses spatial and temporal noise reduction. Spatial noise reduction uses pixels in neighboring areas to detect and reduce noise without eliminating edges. Temporal noise reduction compares the same region across consecutive frames and averages out noise that is not consistently present. The tradeoff is processing latency and the risk of motion blur if the temporal filter is too aggressive. A well-tuned noise reduction stage is what separates a camera that sees faces at night from one that sees colored static.
Color Correction and White Balance
The camera working principle assumes that light sources have predictable spectral properties, but real environments do not cooperate. Fluorescent lighting introduces a green cast. Sodium vapor streetlamps create a strong orange bias. Mixed lighting in retail environments produces scenes where different zones require different correction matrices. White balance algorithms in the image processing pipeline analyze scene statistics, identify neutral regions, and apply color correction matrices to shift the color space toward perceptual accuracy.
In surveillance contexts, color accuracy is not an aesthetic preference. It is a functional requirement. Misidentified clothing colors, inaccurate skin tones, and distorted vehicle paint create investigative errors that have real consequences. The ISP in cameras handles color correction through a combination of automatic white balance and manual calibration profiles, and the accuracy of this stage depends heavily on the quality of the underlying sensor characterization data.
Dynamic Range Management and Backlight Compensation
A camera pointed at a building entrance on a sunny afternoon faces a scene dynamic range that exceeds 100 dB. The difference in brightness between the sunlit exterior and the shaded interior is too large for most image sensors to capture in a single exposure. Without dynamic range management, the ISP in cameras must choose between overexposing the interior or underexposing the exterior, neither of which produces usable surveillance footage.
Wide Dynamic Range processing addresses this by capturing multiple exposures at different shutter speeds and fusing them in the image processing pipeline. The ISP combines a bright frame, optimized for the dark regions, with a dark frame, optimized for the bright regions, into a single output that preserves detail across the full scene luminance range. High-quality WDR requires alignment algorithms to prevent ghosting around moving subjects, motion compensation logic, and tone mapping that produces a natural-looking result rather than the flat, overprocessed appearance of poorly implemented HDR.
Sharpening and Detail Enhancement
The optical blur induced by the lens, diffraction, and pixel pitch of the image sensor cause a reduction of high frequencies within the raw image. The digital image processing chain uses edge enhancement techniques to bring back the apparent sharpness. Unsharp masking and Laplacian sharpening techniques boost the local contrast at the edges, resulting in clearer text and faces. The danger here is to go too far and induce a halo effect around the edges. This is where adaptive sharpening comes into play.
ISP in Cameras: The Hardware at the Core of the Pipeline
The ISP in cameras is a dedicated silicon block, either embedded within a system-on-chip or implemented as a standalone processor, that executes the image processing pipeline in real time at full frame rate. Understanding how surveillance cameras work at a hardware level means understanding what the ISP actually does and why general-purpose processors cannot substitute for it at scale.
A modern ISP contains hardwired logic blocks for each pipeline stage: a demosaicing engine, noise reduction accelerators, a 3A engine for auto-exposure, auto-white balance, and auto-focus, a tone mapping unit, a color space converter, and a compression block that encodes the processed output into H.264 or H.265 for transmission or storage. The ISP executes these operations in a pipelined fashion, processing each row of the image as it arrives from the sensor rather than waiting for a full frame to accumulate. This keeps latency below one frame period even at high resolutions and frame rates.
The 3A algorithm in the ISP constantly monitors the statistics of the scene and makes adjustments to the camera’s settings on the fly. The auto-exposure function adjusts shutter speed and analog gain to keep the exposure value within the required range. Auto-focus drives the lens actuator to maintain focus on the subject of interest. These feedback loops run at frame rate and must be stable under changing conditions without hunting or oscillating.
ISP manufacturers such as Ambarella, HiSilicon, and Qualcomm differentiate their products through the quality of their 3A algorithms, the sophistication of their noise reduction engines, and the flexibility of their programmable processing stages. In surveillance-grade systems, the ISP also exposes metadata outputs, statistics buffers, and configuration hooks that allow the camera design company to tune the pipeline for specific deployment scenarios, from bright retail environments to dimly lit parking structures.
The Internal Architecture of a Surveillance Camera

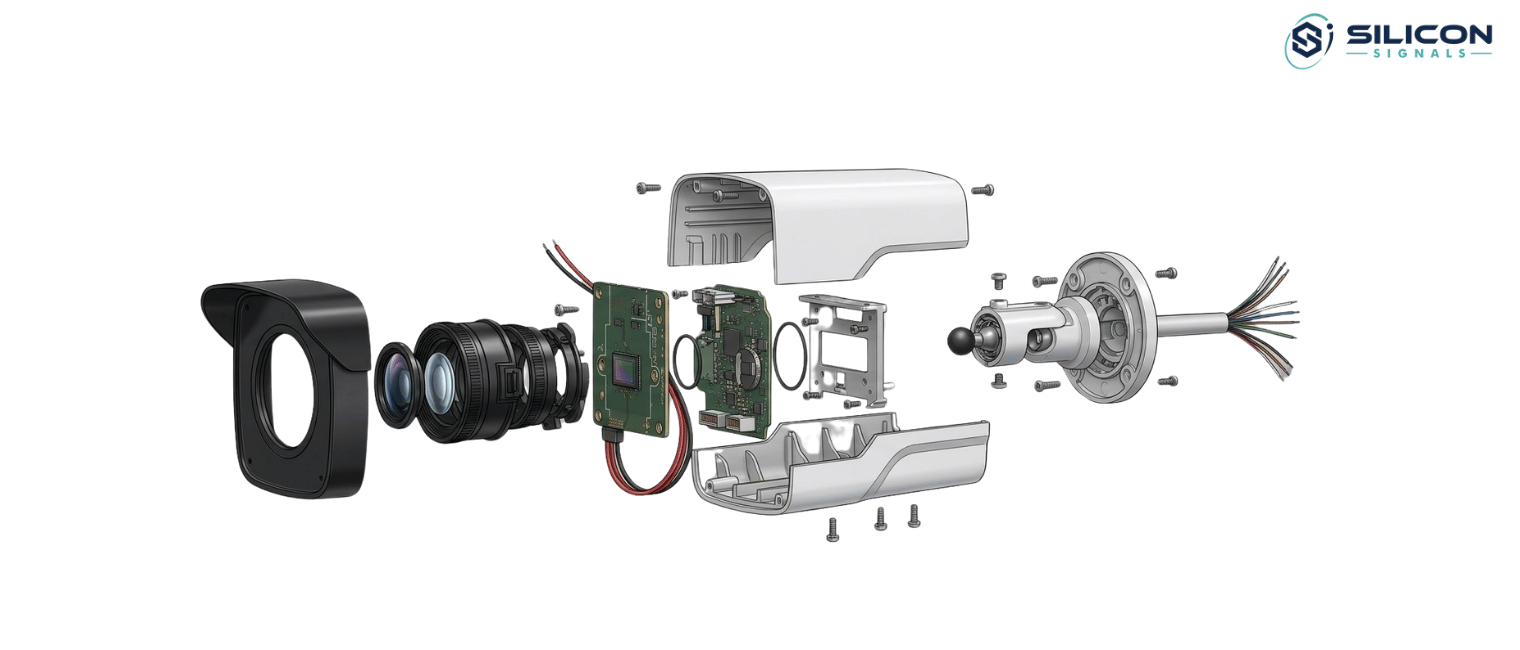

To understand how camera surveillance systems function from an edge AI perspective, one must first have a comprehensive understanding of the hardware architecture. The system combines several key components including: optical assembly, sensor, ISP, neural processor, memory, codec, and communication interfaces into a cohesive whole.
Optical Assembly and Sensor Interface
The light gathered by the optics is focused onto the CMOS sensor. The sensor communicates with the SoC via MIPI CSI-2 interface which is a serial interface for transmitting pixels at high speeds reaching tens of Gbps depending on the number of lanes and speed rating used. The ISP in the camera is interfaced directly with such interface, consuming frames provided by the sensor in raw form.
ISP and 3A Processing
The ISP performs all the necessary image pre-processing operations including demosaicing, denoising, color correction, dynamic range adjustment, sharpening, and tone mapping. It also implements the 3A algorithm for maintaining image quality under various conditions. The result produced by the ISP is a YUV or RGB frame ready for rendering, compression, or AI inference.
Neural Processing Unit and AI Inference
SoCs for modern surveillance systems have an additional NPU that works in tandem with the ISP. The NPU performs deep learning inference using the preprocessed image by deploying object detectors, person re-identification models, license plate readers, and anomaly detection classifiers. The NPU works on models that are either in INT8 or INT4 formats in order to optimize performance in terms of speed and power constraints. The camera operation process here includes directly connecting the output of ISP to the input of NPU.
Codec Engine and Transmission
Those frames that need to be stored or monitored remotely go through the H.265 encoder engine, reducing the file size by an order of magnitude relative to the size of the raw video footage, without compromising the video quality. The encoded frame goes through the network interface and gets sent to an NVR, a cloud service, or any form of storage. Where an Edge AI setup is involved, the camera will generate a metadata stream, including object detection data, time stamps, and confidence levels.
The Role of a Camera Design Company in Building Production-Grade Systems
A camera design company does not just select components and integrate them. It owns the entire technical chain from optical specification through manufacturing validation, and the decisions made at each stage propagate through every aspect of system performance.
Hardware Design and Component Selection
The camera design company selects and qualifies the lens, sensor, SoC, and supporting components to meet the performance requirements of the target application. Sensor selection involves evaluating pixel size, full-well capacity, read noise floor, and rolling vs. global shutter behavior. SoC selection determines which ISP architecture is available, what NPU compute budget the design has, and what codec formats are supported. These choices cannot be revisited cheaply once a design is committed to layout.
Firmware, BSP, and ISP Tuning
The board support package brings up the hardware and provides the software layer through which application code accesses camera functions. BSP development for a surveillance camera involves writing and validating sensor drivers, ISP configuration interfaces, NPU runtime integration, and network stack configuration. ISP tuning is a distinct discipline within the camera design company workflow. It involves characterizing the sensor under controlled lighting conditions, building calibration datasets, and iterating on pipeline parameters to optimize image quality for the deployment environment. A poorly tuned ISP produces footage that the hardware is capable of improving, which represents an engineering cost that gets paid every time the camera is deployed.
Validation, Environmental Testing, and Production Readiness
Surveillance cameras operate in environments that are hostile to electronics. Outdoor deployments face temperature extremes, humidity, condensation, and direct exposure to rain and dust. The camera housing manufacturer needs to verify that the product design is in compliance with the IP67 or IP68 ingress protection standards, perform thermal profiling for the temperature ranges, and EMC testing to make sure that the equipment will neither be affected by nor affect other neighboring systems. Manufacturing readiness entails developing test fixtures, defining the production test sequences, and implementing incoming inspection for the critical parts. A design that performs well in the lab but fails in the field is an engineering and commercial failure, and the camera design company is responsible for preventing it.
Need Expert ISP Tuning & Camera Development Support?
How Surveillance Cameras Work Across Different Deployment Scenarios
The camera working principle adapts to deployment context in ways that affect both hardware selection and pipeline configuration. Retail environments prioritize people counting accuracy and minimal false positives from lighting changes. Vehicle traffic tracking applications necessitate that the license plates be captured while moving at high speeds, a process which requires the use of global shutter sensors along with precise tuning of the image signal processor to avoid motion artifacts. Each scenario changes the requirements placed on the ISP in cameras, the AI model selection, and the overall system architecture.
Indoor vs. outdoor deployment also changes the thermal design requirements for the camera working principle. An indoor camera dissipates heat into a climate-controlled space and operates within a narrow temperature range. An outdoor camera must maintain safe operating temperatures in direct sunlight at 50 degrees Celsius while also functioning at minus 40 degrees Celsius in cold climates. The ISP in cameras and the NPU together represent the majority of the SoC thermal budget, and the mechanical design must provide adequate heat paths to keep junction temperatures within specification.
Multi-sensor and panoramic surveillance architectures add another layer of complexity to how surveillance cameras work. A 360-degree camera may use four or more sensors feeding into a shared ISP and NPU, requiring frame synchronization, cross-sensor color matching, and stitching algorithms that the camera design company must implement and validate. The image processing pipeline in a multi-sensor system is not simply replicated for each sensor. It must be coordinated across sensors to produce a coherent output that analytics can process without artifacts at the stitch boundaries.
Conclusion
How surveillance cameras work is not a simple question. It spans photon capture, analog signal processing, digital image processing pipelines, neural inference, network transmission, and mechanical engineering, and every stage has a direct impact on the value the system delivers. The ISP in cameras is the central engine of this stack, and the camera working principle cannot be understood without understanding the image processing pipeline it executes.
For organizations building surveillance cameras or deploying them at enterprise scale, the engineering choices at each layer compound. A weak ISP tuning effort produces footage that constrains every downstream analytics capability. A poorly integrated NPU produces false alerts that erode operator trust. A mechanically unvalidated design produces field failures that damage both product and brand.
Silicon Signals is a camera design company specializing in end-to-end camera development, from optical design and sensor selection through ISP tuning, AI integration, BSP development, and production validation. The team works across the full hardware and firmware stack, building surveillance camera platforms that perform to specification in real deployment environments, not just in lab conditions. For engineering leaders and product managers building camera-based systems, Silicon Signals provides the domain depth to compress development timelines and avoid the field failures that come from treating the camera working principle as a solved problem.
