Introduction
Cameras are no longer just about capturing images. In industrial environments, they are decision-making tools. In surveillance systems, they are monitoring tools. That difference alone shapes everything from hardware design to data handling.
According to the International Federation of Robotics, global industrial robot installations have crossed 500,000 units annually, and nearly every one of those deployments relies on some form of machine vision. That translates directly into demand for industrial cameras designed for precision, consistency, and integration into automated systems.
At the same time, the global video surveillance market continues to expand, driven by smart cities, infrastructure monitoring, and enterprise security. Surveillance cameras are evolving fast, but their priorities remain fundamentally different from industrial vision systems.
The confusion starts when both types of cameras appear similar on the surface. Same sensors, similar resolutions, sometimes even overlapping vendors. But under the hood, they are built for completely different outcomes.
This blog breaks down the real difference between industrial and surveillance cameras, not just from a spec sheet perspective but from how they behave in real deployments.
Understanding the Role of Cameras in Industrial and Surveillance Systems
Industrial Cameras: Built for Machine Decisions
Cameras used for industries are an integral component of vision-based systems. Instead of delivering appealing visuals, their purpose is to acquire information that can be read by a series of algorithms.
These cameras serve as the “eyes” of machines, and regardless of whether the system needs to detect faults within the assembly line or recognize codes for inventory management, the camera transfers information in real-time.
In these applications, it is expected that any form of input would deliver identical outputs. This is a necessity within the realm of industrial manufacturing because of the need for consistency.
Surveillance Cameras: Built for Human Monitoring
The role of surveillance cameras is quite different from that. They aim to provide images that people or automatic monitoring systems are able to recognize.
The main idea is to achieve maximum coverage and efficient storage of captured videos. It could be either a typical CCTV camera used for monitoring warehouse activities or any IP camera used in intelligent city applications. Unlike industrial imaging devices, surveillance cameras allow various imperfections in conditions when the whole picture is comprehensible.
Planning a surveillance system for security, monitoring, or smart infrastructure?
Core Performance Differences Between Industrial and Surveillance Cameras
Stability, Reliability, and Continuous Operation
Industrial cameras are built for non-stop service. They are capable of operating 24 hours a day in harsh conditions without a drop in their efficiency. Their construction enables them to survive vibrations, temperature changes, and electromagnetic fields.
The installation of the camera can be done in a precise manner within the machinery. Surveillance cameras can work non-stop as well, but their requirements are somewhat different from those of industrial cameras.
Image Acquisition and Data Integrity
In industrial cameras, it is essential to have images captured in an uncompressed form. All the data is sent to a processor, where algorithms examine all pixels.
This provides the greatest level of security in terms of not losing any data. For instance, in case of defect detection or medical purposes, even smallest distortions may cause wrong conclusions.
In surveillance cameras, particularly in IP cameras, there are certain standards of compressing data using H.264 and H.265 codecs.
Shutter Mechanisms and Motion Capture
Precision Timing in Industrial Cameras
Many industrial cameras have a global shutter system. In this way, the whole frame can be exposed at once. The exposure time is very fast, usually on the order of microseconds.
Such a requirement is necessary for capturing images of fast-moving events like the movement of a conveyor belt. Without such an arrangement, there would be problems with motion blur.
Rolling Shutter Limitations in Surveillance Systems
A great number of CCTV cameras have rolling shutter technology. In this case, an image is taken line by line.
In most cases, it is okay for general surveillance. But in situations involving fast objects, it distorts the image.
Scanning Methods and Sensor Behavior
Progressive Scan in Industrial Imaging
In industrial applications, cameras make use of progressive scan sensor technology. Here, each frame is captured completely, thereby maintaining uniformity throughout the image.
Such technology is necessary for computer algorithms used in machine vision.
Interlaced or Optimized Scan in Surveillance Cameras
Surveillance cameras could employ interlaced scanning as well as optimized progressive scanning methods, which are designed to minimize bandwidth.
Here, precision is not the goal; the main objective is to provide high-quality video feeds without much data burden.
Frame Rate and Throughput Differences

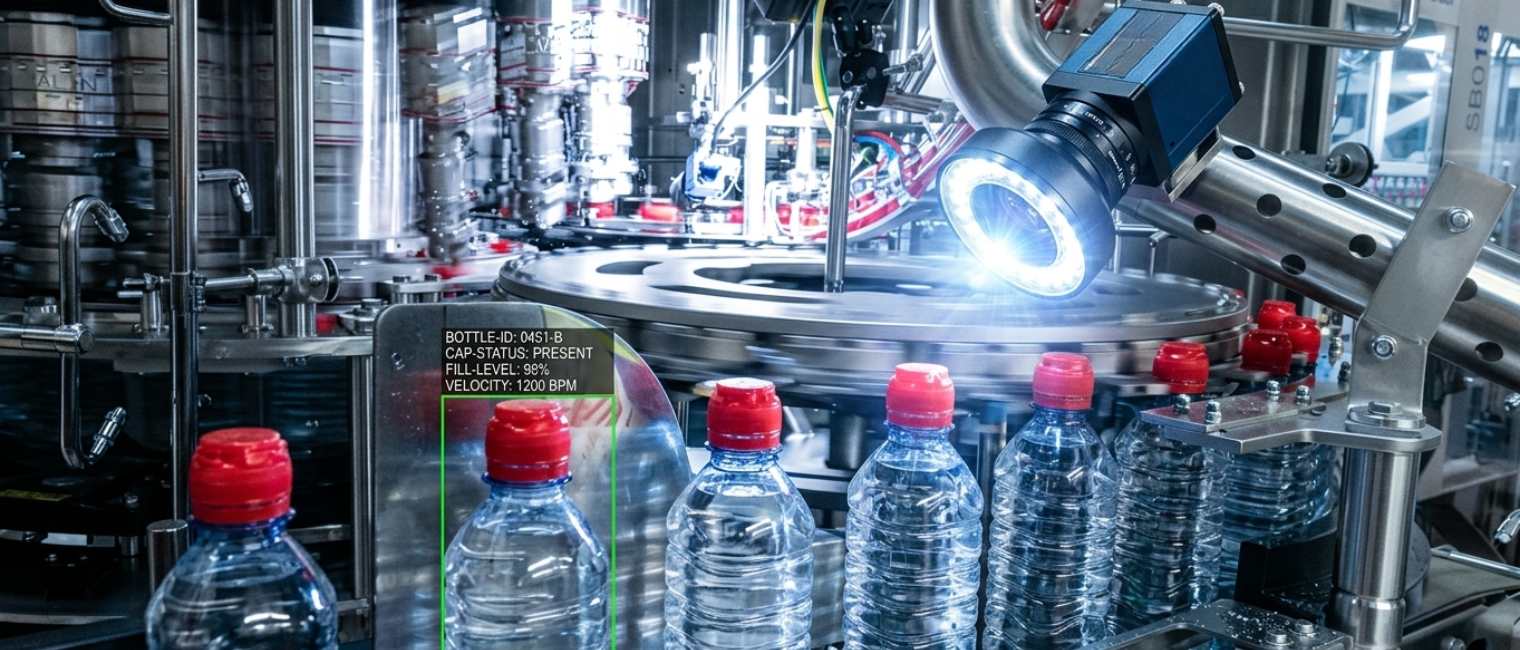

High-Speed Capture in Industrial Applications
In industrial applications, cameras can capture a high number of images within a second period, usually going up to hundreds or even thousands of frames per second.
The reason why this characteristic is important is that there are some instances when the event being captured occurs very fast.
Therefore, failure to capture the event because of low capture rate will mean losses.
Standard Frame Rates in Surveillance Systems
Surveillance cameras have a normal operation speed of between 15 and 60 frames per second.
The speed range is enough for observing the events by the naked eye and also capturing them.
Spectral Sensitivity and Image Processing
Wide Spectral Range in Industrial Cameras
The industrial cameras have a wider spectral range in which the data captured may extend outside the visible spectrum.
Applications include those such as thermal inspections, materials analysis, and medical imaging.
The output from these devices is typically the unprocessed data, which can be analyzed using specific software.
Human-Centric Imaging in Surveillance Cameras
The surveillance cameras are designed to suit the human eye, with functions such as color correction, noise reduction, and dynamic range adjustment.
This allows for the production of good-quality images.
However, the data is processed inside the camera, and the output is video.
Data Transmission and Processing Architecture
Industrial Cameras: External Processing Model
Industrial cameras feed their raw data into external processors, which could be industrial PCs or other embedded processing devices.
This configuration enables programmers to create unique algorithms for specific uses.
However, the drawback is that it requires more data bandwidth and faster processors.
Surveillance Cameras: Edge Processing Model
Surveillance cameras have some level of processing ability in them. For example, they can detect motion, recognize faces, or trigger certain events.
Their output data is then sent through networks without requiring external computing power.
Therefore, surveillance systems are much easier to deploy.
Environmental Design and Durability
Industrial Cameras in Harsh Conditions
Industrial settings are often harsh. This is because of dust, vibrations, extreme temperatures, and even noise.
Industrial cameras are manufactured to work in such situations. They are constructed to withstand any sort of roughness.

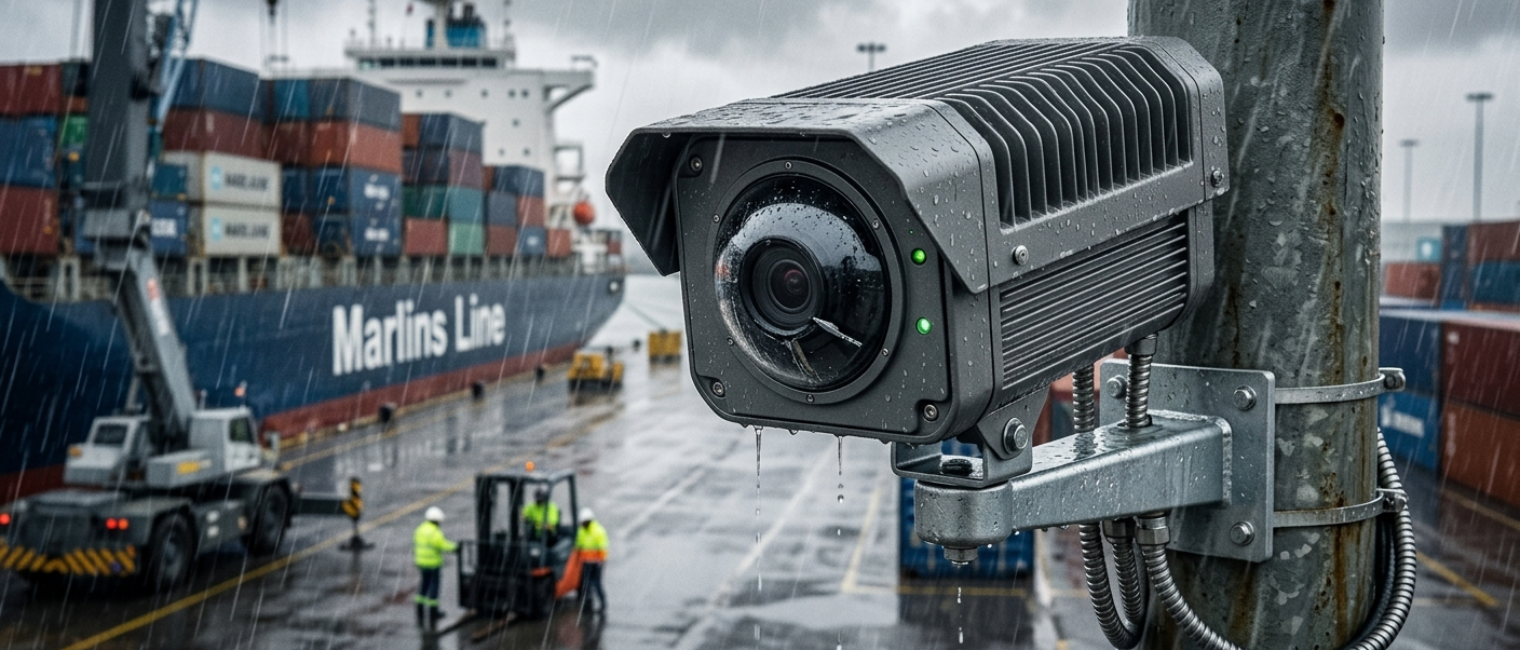

Surveillance Cameras and Protective Enclosures
Surveillance cameras are also used in adverse conditions. Nevertheless, in such cases, their protective nature depends on casing.
Casing in the form of weather-resistant, vandalism-proof, and heat-dissipating materials is often used.
Cost Considerations and Market Dynamics
An industrial camera is more costly than a surveillance camera. The cost issue goes beyond hardware. It relates to manufacturing volumes and application considerations.
The industrial camera market is smaller, and greater requirements for accuracy and dependability make them costlier.
Mass production and standardization enable cost reduction for surveillance cameras.
Why Industrial and Surveillance Cameras Are Not Interchangeable
From the outset, you may find that it is possible to apply a surveillance camera to an industrial application or vice versa. This is often not the case.
The industrial application is highly demanding when it comes to determinism. Consistency between frames, accuracy of pixels, and precise timings are necessary for each frame captured.
Coverage, recording, and retrieval are essential features of a surveillance system and should not be expected to function under the stringent demands of machine vision.
Choosing the Right Camera for Your Application
Selecting the proper camera depends on a thorough comprehension of the objectives and goals of the entire system. Understanding the purpose of the intended use of the camera determines the type of data required, processing methods, and necessary reliability of the imaging system.
If the intent is automation, inspections, or any kind of decision based on data gathered from the image, an industrial camera will suffice. In these instances, accuracy, timing, and direct access to raw data must be considered. Any discrepancy in the collected data could result in an erroneous decision, which would have detrimental effects during manufacturing processes.
However, for applications where the main focus is monitoring, recording, or securing specific locations, the surveillance camera becomes the preferred choice. Surveillance cameras are designed primarily for the transmission of data over extended distances without requiring additional equipment and facilities. They provide efficient and convenient communication without consuming too much memory or bandwidth.
The importance of making this decision before designing the camera cannot be underestimated.
Building a machine vision or automation system?
Conclusion
The difference between an industrial-grade camera and a surveillance-grade camera goes beyond technological differences. It is more of a fundamental difference in the architecture of visual data processing systems.
Although the choice of a camera may be quite simple for firms developing embedded vision systems, IoT solutions, and intelligent solutions, developing a resilient and scalable system is a challenge.
That is where Silicon Signals Pvt. Ltd. comes in. Starting from the selection of the camera to the optimization of the ISP and even development of the complete solution with embedded vision, Silicon Signals helps firms design a scalable and effective solution.
No matter what the application is, be it machine vision, AI-driven inspection solutions, or intelligent monitoring solutions, the goal is always the creation of a system capable of delivering predictable and reliable performance.
