Introduction
Walk any large facility with a single-camera mindset, and you will find gaps: loading docks no one is watching, stairwells outside the frame, parking structures that go dark the moment a guard steps away. It is how most post-incident reviews start, with someone asking why footage of the exact spot where it happened does not exist. A multi-camera surveillance system exists to close those gaps, not by throwing more hardware at the problem, but by building coverage that is coordinated, overlapping, and intelligent. This article walks through how these systems work in practice, what actually separates a well-designed deployment from one that just looks good on paper, and why the camera hardware itself matters more than most security teams realize.
Why Multi-Camera Surveillance Systems Are Becoming Essential for Modern Security
Ten years ago, a camera at the front entrance and one in the server room felt like reasonable coverage. Facilities were smaller, threats were more predictable, and security teams could physically walk most of a site in minutes. That reality no longer holds for most enterprise environments. A single camera watching a single angle is a single point of failure, and attackers, whether external or internal, know exactly where the gaps are.
Eliminate Blind Spots with Complete Area Coverage
The places with no camera coverage are the places where incidents happen. It sounds obvious, but most facilities inherit their camera layouts from whoever installed the original system years ago, and those layouts were never designed for the building as it actually operates today.
A properly designed multi-camera surveillance system accounts for the real traffic patterns in a facility where people actually move, where high-value assets actually sit, and which corridors connect sensitive areas. Overlapping fields of view are deliberate, not accidental. When one camera goes offline, the adjacent unit still covers the zone. That is not redundancy for its own sake; it is what makes enterprise surveillance actually reliable.
Monitor Multiple Critical Zones Simultaneously
A security operator watching a single feed is not doing security monitoring; they are watching one room. In a large facility, that is close to useless. The whole point of a multi-camera surveillance system is that it aggregates dozens or hundreds of live streams into a single managed view, so operators can see the loading dock, main entrance, server room, and executive floor at the same time without physically moving. When something flags in one stream, they do not have to stop watching everything else to investigate. That simultaneity is what makes real-time response possible.
Improve Incident Verification with Multi-Angle Evidence
Single-angle footage creates ambiguity that lawyers exploit, and investigators hate. Was the person running toward the exit or away from something else? Was that hand gesture intentional or incidental? When a multi-camera surveillance system captures the same scene from multiple angles, those questions get answered. Enterprise surveillance teams that have dealt with insurance claims or law enforcement requests know the difference between footage that establishes facts and footage that raises more questions than it answers. Multi-angle coverage consistently falls into the first category.
Enable Faster Security Response and Decision-Making
The gap between when something happens and when someone responds is where damage occurs. A multi-camera surveillance system with AI-driven alerts compresses that gap significantly. Motion in a restricted zone at 2 AM does not wait for an operator to notice it; it triggers an alert that routes to whoever needs to know within seconds. That speed matters most in scenarios where the first 60 seconds determine whether an incident is contained or escalates into something much harder to manage.
Scale Surveillance Across Large Enterprise Facilities
Security infrastructure rarely stays static. Companies expand into new floors, acquire adjacent buildings, and open satellite offices. A multi-camera surveillance system that was designed with scalability in mind handles that growth without requiring a full architecture every time the footprint changes. Adding cameras, extending coverage zones, or bringing a new site into the same management platform should be operational decisions, not engineering projects.
How to Choose the Right Multi-Camera Surveillance System
There is no universal formula to count cameras needed to secure a facility. What matters is whether the cameras cover the zones that need coverage, transmit reliably, and integrate with the software your team uses every day. Getting that right requires working through a few decisions methodically rather than defaulting to whatever the integrator recommends.
Determine the Number and Placement of Cameras
Camera placement starts with a site survey, not a spec sheet. You map the facility, identify the zones that carry the most risk such as entry points, asset storage, network infrastructure, and areas with limited natural visibility, and then figure out what field of view each location requires. Some areas need a tight, high-resolution view of a specific surface; others need wide coverage of an open space. The number of cameras that results from that analysis is the number you need.
A multi-camera surveillance system designed around actual coverage requirements will outperform one designed around a budget-per-camera figure every time.
Select the Right Camera Types for Different Locations
Fixed cameras handle high-traffic access points well; they hold a specific angle; they do not require operator intervention, and they record consistently. PTZ units are useful in open areas where the threat vector can shift, since operators can redirect coverage without physically repositioning hardware. Wide-angle and fisheye cameras work in large open spaces like warehouses, where you want maximum area coverage from a single mounting point. No single camera type covers every scenario in an enterprise environment, which is why a well-specified multi-camera surveillance system typically uses several.
Choose the Appropriate Video Transmission Interface
This is the decision most enterprises underestimate. How video gets from the camera to the recorder or analytics platform determines latency, cable run distance, and system cost in ways that only become apparent after installation. MIPI CSI-2 is standard in compact embedded camera designs where the processor sits close to the sensor.
For runs across a large facility, GMSL2 and FPD-Link III handle high-bandwidth video over coaxial cable without the signal degradation that kills image quality at distance. Ethernet-based cameras offer flexibility in placement but require a network infrastructure that is genuinely capable of carrying continuous high-resolution video, which many enterprise networks are not, without some deliberate configuration.
Consider AI Processing and Recording Infrastructure
Where AI processing happens is a more consequential decision than it might appear. A multi-camera surveillance system that sends every raw stream to a central server for analysis is placing enormous demand on both the network and the compute infrastructure at that central point. When either gets congested, detection latency goes up, and alerts slow down.
Edge processing, whether on the camera itself or on a local compute node, keeps analysis close to the source and keeps the core network free for other traffic. The tradeoff is that edge hardware needs to be specified, maintained, and updated, which adds operational overhead.
Ensure Seamless Integration with Enterprise Surveillance Software
Hardware without software integration is just cameras recording to nowhere useful. A multi-camera surveillance system needs to speak the same protocols that those platforms expect: RTSP for video streaming, and ideally a validated integration with whichever VMS the organization has standardized on. Cameras that fall outside that ecosystem create isolated footage repositories that nobody looks at until after something goes wrong.

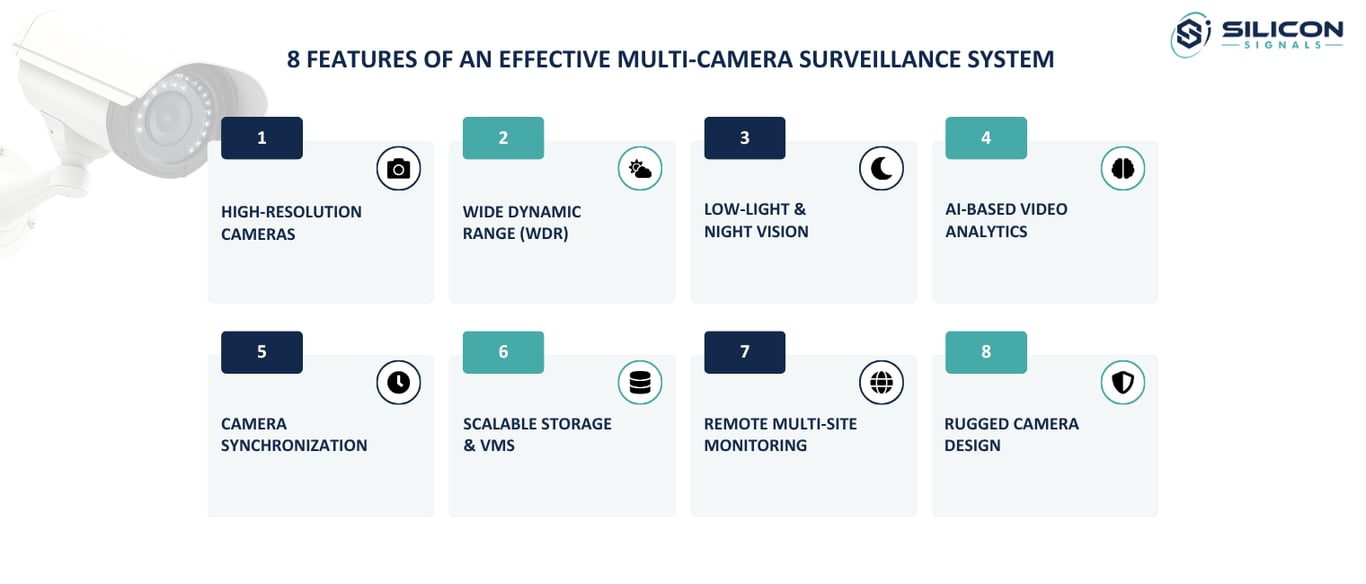

8 Features That Make a Multi-Camera Surveillance System More Effective
Most camera spec sheets list the same capabilities. The difference between a system that works in practice and one that disappoints is usually in the details of how those capabilities perform under real facility conditions, such as inconsistent lighting, 24-hour operation, and physical exposure to the environment.
- Multiple High-Resolution Cameras for Clear Evidence
Resolution determines whether footage is actually useful after an incident. A 4K frame captured at the right distance lets investigators read a license plate, identify a face, or verify whether a badge swipe was authorized. The same scene captured at 1080p from the same distance often cannot support those determinations. For enterprise surveillance applications where footage feeds into legal proceedings, insurance claims, or regulatory audits, image quality is not a nice-to-have it is the point.
- Wide Dynamic Range (WDR) for Challenging Lighting
Most enterprise facilities have at least a few camera positions where the lighting is genuinely difficult a lobby with direct sunlight through glass walls, a receiving dock where fluorescent interior light meets bright daylight outside, a parking structure entrance with dramatic shadow contrast. Without true WDR processing, cameras in those positions produce footage where either the bright areas are blown out or the dark areas are black. WDR-capable sensors capture usable detail across the full brightness range of the scene, which is what makes security monitoring in mixed-light environments actually viable.
- Low-Light and Night Vision Performance
Security incidents do not cluster during business hours. A multi-camera surveillance system needs to maintain image quality through the full 24-hour cycle, including the low-light periods when human oversight is thinnest. Starlight sensors perform well in areas with residual ambient light. Near-infrared illumination extends visibility in spaces that go fully dark. Thermal cameras are appropriate for outdoor perimeters where IR floodlighting would be impractical or obvious. The right choice depends on the specific location; there is no single low-light solution that fits every scenario.
- AI-Based Motion Detection and Video Analytics
Manual review of continuous footage from a large multi-camera surveillance system is not operationally viable at scale. Nobody has enough staff to watch hundreds of feeds. AI-based analytics change the model; instead of operators watching cameras for anomalies, the system flags them and routes the relevant clip to whoever needs to act.
Motion within defined restricted zones, individuals loitering in sensitive areas, and vehicles entering after hours are detected and surfaced automatically. The operator’s job shifts from passive observation to active response, which is a better use of human attention.
- Camera Synchronization for Accurate Event Tracking
When footage from multiple cameras needs to reconstruct a sequence of events, timestamp accuracy becomes critical. A multi-camera surveillance system where cameras drift even a few seconds apart relative to each other produces footage that is difficult to use for forensic reconstruction.
Hardware-level synchronization using GPS time references or IEEE 1588 Precision Time Protocol keeps every camera in the system locked to the same clock, so that multi-angle footage can be assembled into an accurate timeline without ambiguity about what happened in what order.
- Scalable Storage and Video Management
A 50-camera system recording continuously in 4K generates several terabytes of data per day. At 90-day retention, the requirement in some regulated industries is hundreds of terabytes of footage that needs to be accessible, searchable, and protected.
Tiered storage architectures address this by keeping recent footage on fast local storage and migrating older recordings to less expensive archive storage automatically. H.265 encoding reduces file sizes significantly compared to older codecs without a visible quality penalty, which means the same storage budget goes considerably further.
- Remote Monitoring Across Multiple Sites
Enterprise organizations with facilities in multiple cities or countries find it hard to manage security operations at every location. A multi-camera surveillance system with cloud-connected video management brings every site into a single interface, so a centralized team can access any camera feed, review any recorded footage, and manage alert workflows across the entire portfolio from one screen. This centralization is what allows security monitoring to scale with the organization rather than requiring proportional headcount growth at every location.
- Rugged Camera Design for Indoor and Outdoor Deployment
Enterprise facilities expose cameras to conditions that consumer-grade hardware was never designed to handle. Outdoor cameras face temperature extremes, humidity, dust, and direct water exposure. Industrial interior environments add vibration, chemical exposure, and physical impact risk.
Cameras in these environments need IP66 or IP67-rated enclosures, operating temperature specifications that cover the actual range they will experience, and housings that hold up to physical contact without requiring frequent replacement. A multi-camera surveillance system with appropriately specified hardware runs for years without maintenance issues; one built on underspecified hardware starts failing components within months.

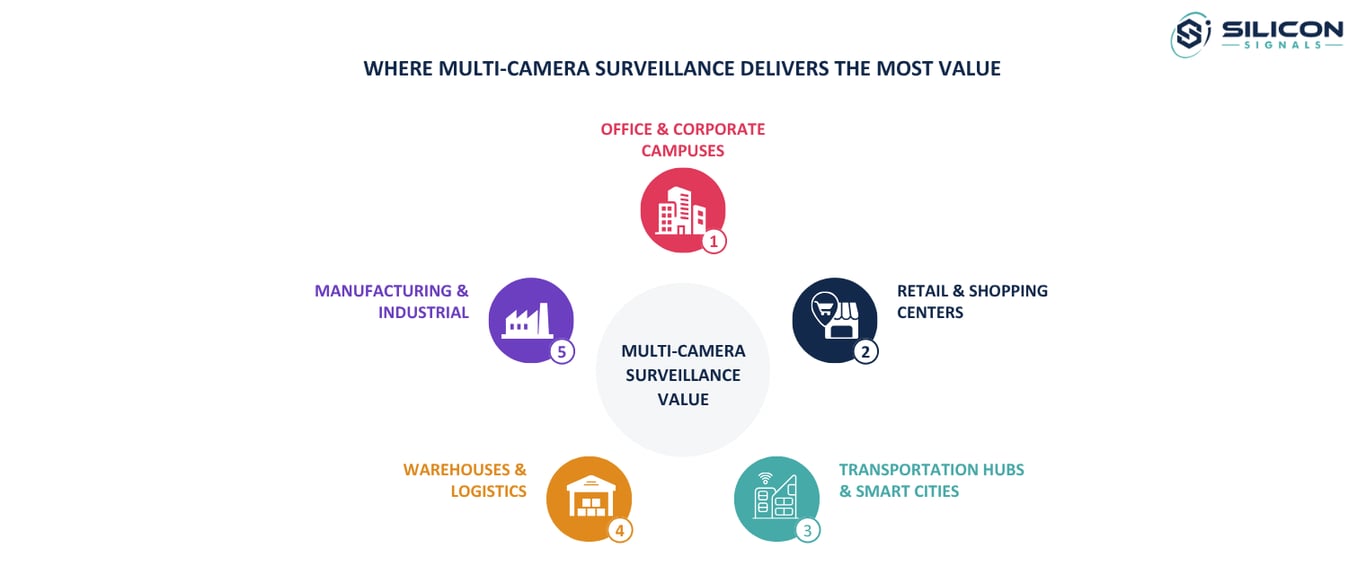

Where Multi-Camera Surveillance Systems Deliver the Most Value
Every facility type has its own security profile. The specific value a multi-camera surveillance system delivers depends on what the facility actually needs to protect and what its specific operational risks look like.
Manufacturing Plants and Industrial Facilities
Manufacturing environments combine expensive equipment, regulated processes, and large workforces operating across shifts with minimal supervision overlap. A multi-camera surveillance system in a plant monitors access control at equipment zones, tracks inventory movement through the facility, and provides perimeter coverage for outdoor storage areas.
AI-based analytics add another dimension by detecting safety violations, workers entering restricted machinery zones, operating equipment without required protective gear, or accessing areas outside their authorization level. That extends security monitoring into occupational safety in a way that manual supervision cannot match.
Warehouses and Logistics Centers
Inventory shrinkage in warehouse environments is a persistent and measurable problem. A multi-camera surveillance system with comprehensive coverage of dock doors, storage aisles, and vehicle lanes creates a visual record of every movement through the facility.
When inventory discrepancies appear, footage review can usually establish whether the loss happened at receiving, during storage, or at dispatch, which is the kind of operational intelligence that makes investigations productive rather than speculative.
Office Buildings and Corporate Campuses
Corporate campuses are high-traffic environments where hundreds or thousands of authorized users move through every day, which makes unauthorized access genuinely difficult to detect without systematic security monitoring.
A multi-camera surveillance system integrated with access control correlates badge events with camera footage, so that tailgating at a secured door or badge use outside normal hours automatically surfaces as a flagged event rather than getting lost in the volume of normal activity.
Retail Stores and Shopping Centers
Retail security monitoring has always been about loss prevention, but modern multi-camera surveillance systems do more than watch for shoplifting. AI analytics generate data on queue depth, traffic flow through store sections, and dwell time in specific product areas, information that has direct operational value for store layout and staffing decisions. The security investment produces returns that extend beyond loss reduction, which makes the business case easier to build.
Transportation Hubs and Smart Cities
Airports, rail stations, and public transit terminals operate at a scale where a multi-camera surveillance system is not optional; it is the only way to maintain any meaningful situational awareness across facilities that see tens of thousands of people moving through them daily. Crowd density monitoring helps identify congestion before it becomes a safety issue.
Vehicle tracking at perimeter access points provides a record of every movement in and out of secured areas. These systems are also increasingly integrated with city-wide security monitoring infrastructure, extending coverage beyond individual facilities into coordinated urban security networks.
Common Challenges in Multi-Camera Security Monitoring
A multi-camera surveillance system solves the coverage problem. It also creates engineering challenges that, if not addressed deliberately, can undermine the value of the investment.
Managing High Video Bandwidth
Raw video from a large camera deployment is a significant network load. A 50-camera system with 4K sensors pushing continuous streams can saturate a network that was not designed for that traffic, and enterprise networks almost never were. The practical answer is to compress and filter at the edge rather than pushing raw streams to a central point. Transmitting motion-flagged clips rather than continuous feeds, using efficient codecs, and distributing processing across the camera network rather than centralizing it all keep bandwidth consumption at a level the existing infrastructure can handle.
Storage Requirements for Continuous Recording
Retention requirements vary by industry, but 30 to 90 days of footage retention is common, and some regulated environments require longer. For a large multi-camera surveillance system, that means storage infrastructure measured in petabytes, with access fast enough to support rapid retrieval during incident investigations. Variable bitrate encoding, which reduces file size during low-activity periods and increases quality during high-activity events, helps manage storage consumption without creating gaps in coverage. Tiered storage that automatically migrates older footage to lower-cost archive media handles the long-tail retention requirements without the cost of keeping everything on high-performance storage.
Camera Synchronization and Network Reliability
A multi-camera surveillance system is only as reliable as the network it runs on. Packet loss introduces artifacts in recorded footage. Clock drift between cameras creates timestamp inconsistencies that complicate forensic review. Network outages can create coverage gaps exactly when coverage matters most. Designing for these failure modes, redundant network paths, local edge recording that buffers footage through connectivity interruptions, and hardware synchronization that keeps timestamps accurate regardless of network conditions is the difference between a system that holds up under pressure and one that fails when it is needed most.
Simplifying Multi-Site Surveillance Management
The management overhead of a multi-site surveillance deployment can become a significant operational burden if the system architecture does not account for it upfront. Security teams with sites in multiple locations need a management interface that aggregates feeds, health status, and alert queues from every site into a single view. They also need access controls that allow site-level teams to manage their local cameras without exposing the entire system. Enterprise VMS platforms provide this, but they require deliberate configuration; it does not happen automatically.
Conclusion
Enterprise security needs more than just stand-alone cameras. Multi-camera video surveillance offers a coherent and consistent view of an entire facility that cannot be offered by standalone camera systems. Engineering considerations related to camera choice, edge processing, storage architecture, and software integration will ultimately define security monitoring success and ROI. For those organizations looking for equipment designed specifically for their requirements.
Silicon Signals specializes in the development of customized camera modules, including sensor design, optical engineering, and embedded artificial intelligence.
