Introduction
Most failed machine vision deployments are not caused by bad software. They are caused by the wrong sensor. A team selects a 5-megapixel CMOS imager because it was affordable and widely available, only to discover months later that rolling shutter distortion corrupts fast-moving bottle cap inspections or that dynamic range is insufficient for reflective metal surfaces under factory lighting. Machine vision sensor selection is a system-level engineering challenge, and the image sensor forms its foundation.
The global machine vision market is projected to reach $36.48 billion by 2032, driven by factory automation and AI-powered quality control. Yet sensor misselection remains one of the leading causes of delayed deployments and costly redesigns. This guide gives engineers and OEM product teams a structured framework for industrial camera sensor selection from defining inspection requirements to evaluating long-term product lifecycle considerations.
This article walks through each decision layer: resolution, shutter type, sensor size, pixel performance, dynamic range, frame rate, spectral response, and environmental tolerance. It also maps these parameters to specific industrial applications and provides a selection checklist for OEMs building production-grade systems.

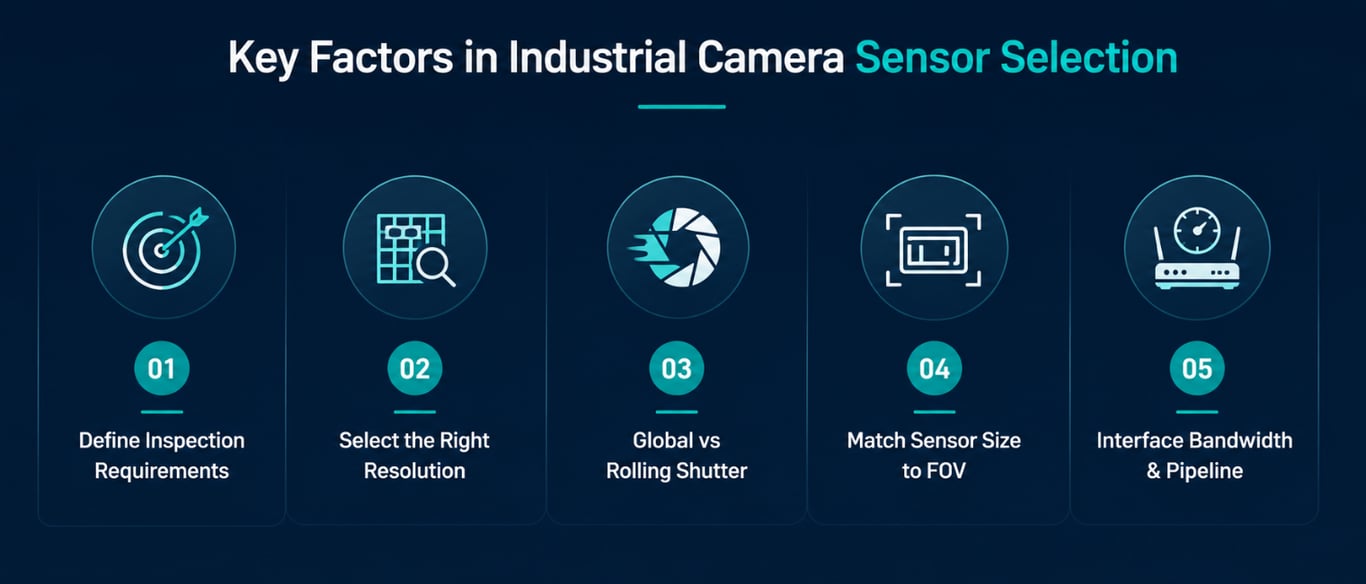

Key Factors in Industrial Camera Sensor Selection
Define the Inspection Requirements Before Choosing a Sensor
Before comparing datasheets, engineering teams need to answer a set of upstream questions. What is the smallest defect the system must detect? How fast does the target move? What is the working distance and field of view? What are the lighting conditions at the inspection point? How much computational headroom exists on the host processor?
Industrial camera sensor selection that begins with sensor specifications rather than inspection requirements almost always results in a mismatch. The sensor is the first transducer in the imaging pipeline. Every downstream decision about optics, lighting, processing, and software depends on what the sensor can and cannot capture. A thermal seal gap of 50 microns on a packaging line demands a very different sensor than a part presence check in a bin-picking system.
Document the inspection geometry first. Calculate the required spatial resolution in microns per pixel. Determine whether the target is stationary or in motion, and at what speed. Understand the contrast characteristics of the defect against the background. Only then does industrial camera sensor selection become a well-constrained engineering problem.
Selecting the Right Resolution for Defect Detection
Resolution in machine vision is not a marketing metric. It is a derived requirement. The relationship between field of view, minimum feature size, and pixel count determines the resolution floor. If a sensor must image a 200mm-wide circuit board and detect solder bridges as small as 0.1mm, the calculation requires a minimum of 2,000 pixels across the horizontal axis and realistically more, to account for subpixel accuracy needs and optical aberrations at the sensor edges.
Common resolution ranges for industrial sensors
Industrial CMOS sensors for machine vision typically span 0.3 MP to over 100 MP. Most production inspection systems operate in the 2 MP to 20 MP range. Pixel sizes range from 1.5 microns to 10 microns depending on sensor format and application.
Higher resolution is not always better for machine vision sensor selection. A 20-megapixel sensor produces more data per frame, which increases bandwidth demands on the interface, processing load on the host, and storage requirements for logging. For many applications, a 5 MP sensor with the right optics outperforms a 20 MP sensor with an ill-matched lens. Resolution must be chosen in conjunction with the lens, the interface bandwidth (USB3, GigE, CoaXPress, Camera Link), and the processing pipeline.
One important consideration in machine vision sensor selection is the relationship between pixel count and pixel size on a fixed-format sensor. A 1-inch sensor with 16 megapixels has smaller pixels than the same format sensor at 5 megapixels. Smaller pixels capture less light per unit time, which has direct consequences for frame rate, signal-to-noise ratio, and low-light performance.
Global Shutter vs. Rolling Shutter for Machine Vision Applications
This is one of the most consequential decisions in industrial camera sensor selection, and it is frequently underestimated.
A rolling shutter exposes each row of pixels sequentially rather than simultaneously. For stationary or slow-moving objects, this is invisible. For targets moving at production line speeds conveyor belts, rotating parts, blister packs rolling shutter introduces a lateral skew artifact that distorts object geometry. A circle becomes a parallelogram. A straight edge acquires an angle. Any dimensional measurement made on a rolling-shutter image of a moving target is unreliable.
A global shutter exposes all pixels simultaneously, eliminating motion artifacts entirely. Global shutter CMOS sensors are larger, more complex to manufacture, and more expensive than equivalent rolling shutter devices. They also tend to exhibit slightly lower sensitivity because the in-pixel storage element consumes some of the photoactive area. However, for any machine vision application where targets are in motion during exposure, global shutter is not optional; it is a baseline requirement for machine vision sensor selection.
Applications such as barcode reading, dimensional inspection on conveyors, robot-guided pick-and-place, and pharmaceutical blister pack verification all require global shutter sensors. Applications such as metrology of stationary parts, microscopy, or document scanning can often use rolling shutter sensors without issue.
Need Help Choosing the Right Camera Sensor?
Matching Sensor Size to Field of View Requirements
Sensor format expressed in the legacy nomenclature of fractions of an inch, from 1/4-inch to full-frame 35mm, determines the field of view achievable with a given focal length lens. A larger sensor with the same focal length produces a wider field of view. This matters in industrial camera sensor selection because it constrains the lens options available for a given working distance and coverage area.
In practice, the sensor is typically chosen first based on resolution, pixel size, and interface requirements. A compatible lens is then selected to match the sensor format. The lens image circle must cover the sensor diagonal using a lens designed for a smaller format on a larger sensor produces vignetting and corner distortion. A 1/2-inch format lens on a 1-inch format sensor will not illuminate the full sensor area correctly.
Larger sensors also impose more demanding requirements on optical quality. Field curvature, distortion, and chromatic aberration become more pronounced at larger sensor diagonals. OEMs should budget accordingly for the optical system, particularly when the sensor format exceeds 1 inch.
Understanding Pixel Size and Low-Light Performance
Pixel size governs light collection efficiency. A larger pixel captures more photons per unit time, producing a higher signal relative to noise. This directly affects performance in low-light conditions, at high frame rates where exposure time is short, and in applications where illumination is constrained by the process environment such as food inspection under UV, or pharmaceutical inspection where intense white light causes product degradation.
For industrial camera sensor selection in challenging lighting environments, pixel size is as important as total resolution. A 5 MP sensor with 5.5-micron pixels will typically outperform a 20 MP sensor with 2-micron pixels in low-light or fast-exposure scenarios, even though the latter has four times the pixel count.
Typical pixel sizes for machine vision sensors range from 1.5 microns in high-resolution 35mm-format sensors to 10 microns in lower-resolution scientific-grade devices. For most industrial inspection tasks, pixel sizes between 3.45 microns and 5.86 microns offer a practical balance between resolution density and photon collection.
Dynamic Range Considerations in Industrial Environments
Dynamic range defines the sensor’s ability to simultaneously capture detail in both bright and dark regions of a scene. It is expressed in decibels. The human eye operates at approximately 100 dB. Industrial machine vision sensors typically deliver 60 to 80 dB, with some high-dynamic-range (HDR) variants reaching 90 dB or higher.
Industrial environments routinely present high-contrast scenes. Specular reflections from polished metal surfaces, dark recesses next to bright highlights on injection-molded parts, and inspection zones with mixed natural and artificial lighting all require wide dynamic range to extract reliable feature data. When dynamic range is insufficient, bright regions saturate and dark regions drown in noise both conditions generate false rejects or, worse, false accepts.
For machine vision sensor selection in high-contrast environments, evaluate whether the sensor supports multi-exposure HDR modes. Some CMOS sensors implement dual-gain architectures or multiple storage nodes per pixel to extend effective dynamic range without requiring multiple image captures. This adds complexity to the image processing pipeline but can eliminate the need for specialized lighting rigs that flatten scene contrast artificially.
Choosing the Appropriate Frame Rate for Production Lines
Frame rate in machine vision is not about smooth video. It is about throughput coverage. If a production line moves ten parts per second and the camera captures eight frames per second, two parts are never imaged. If parts overlap in the frame, more frames per second are required to ensure each unit receives a unique, complete exposure.
Frame rate interacts with resolution and interface bandwidth in industrial camera sensor selection. A 10 MP sensor at 100 FPS generates ten times the data of the same sensor at 10 FPS. Not every interface can sustain that bandwidth. USB3 Vision supports up to approximately 400 MB/s. GigE Vision is limited to roughly 100 MB/s. CoaXPress 2.0 reaches up to 12.5 Gbps per channel. The sensor’s internal readout speed, the interface protocol, and the host system’s capture card all set the ceiling for sustainable frame rate at a given resolution.
Monochrome sensors typically achieve higher frame rates than equivalent color sensors at the same resolution, partly because they require no demosaicing and partly because they generate less data per frame at equivalent bit depth. For high-speed production line inspection, monochrome industrial cameras are the default choice.
Monochrome vs. Color Sensors for Industrial Inspection
Color sensors incorporate a Bayer filter mosaic an array of red, green, and blue filter elements placed over adjacent pixels. The interpolation process that reconstructs full-color images from this mosaic (demosaicing) reduces effective spatial resolution and adds computational overhead. A 10 MP color sensor delivers somewhat less spatial sharpness than a 10 MP monochrome sensor of the same design.
Monochrome sensors are preferable for most industrial inspection tasks. They offer higher spatial resolution, greater sensitivity (no filter elements blocking photons), and simpler image processing pipelines. Machine vision sensor selection defaults to monochrome unless color is an explicit inspection criterion for example, detecting color coding errors on wire harnesses, verifying label color compliance, or inspecting food products where discoloration indicates spoilage.
When color is required, three-chip sensors (using a prism to direct light to separate RGB sensors) provide full-resolution color without demosaicing artifacts, but at significantly greater cost and complexity. Area scan color sensors with Bayer patterns are the practical choice for most cost-sensitive industrial applications requiring color discrimination.
Evaluating Sensor Performance Under Challenging Lighting Conditions
Industrial lighting environments rarely cooperate. Overhead fluorescent or LED fixtures at varying heights, reflections from polished or semi-specular surfaces, ambient light variation through factory windows, and heat shimmer from process equipment all affect image quality. Machine vision sensor selection must account for the actual illumination conditions at the inspection station, not ideal laboratory conditions.
Responsivity the sensor’s output voltage per unit of incident illumination in the linear region determines how the sensor responds to the available light. Sensors with higher responsivity produce usable signal at lower illumination levels. This is particularly relevant when illumination must be constrained: flash duration for high-speed imaging, UV or near-infrared illumination for specific material discrimination, or polarized light for surface defect enhancement.
Quantum efficiency curves show how the sensor responds across the visible and near-infrared spectrum. For applications using non-visible illumination 850 nm NIR for through-silicon inspection, 365 nm UV for fluorescence imaging selecting a sensor with high quantum efficiency at the relevant wavelength is a prerequisite for industrial camera sensor selection.
Environmental and Reliability Requirements for Industrial Cameras
Industrial cameras are not laboratory instruments. They operate continuously in environments with vibration, thermal cycling, dust, humidity, cleaning chemicals, and electromagnetic interference. The sensor itself must maintain calibrated performance across the operating temperature range typically -10°C to 60°C for standard industrial grades, with extended ranges for outdoor or harsh-environment deployments.
Sensor dark current increases with temperature, raising the noise floor and reducing effective dynamic range. For applications in high-temperature environments, industrial camera sensor selection should include sensors characterized at elevated temperatures, or camera designs that actively manage sensor temperature through heatsinking or controlled airflow.
Long-term availability is a critical and frequently neglected parameter. Consumer-grade sensors are discontinued on product cycles of two to three years. Industrial applications require cameras that remain in production for five to ten years or longer. Machine vision sensor selection for OEM products must verify the sensor supplier’s stated product lifecycle commitment and availability of form-fit-function replacements before design lock-in.

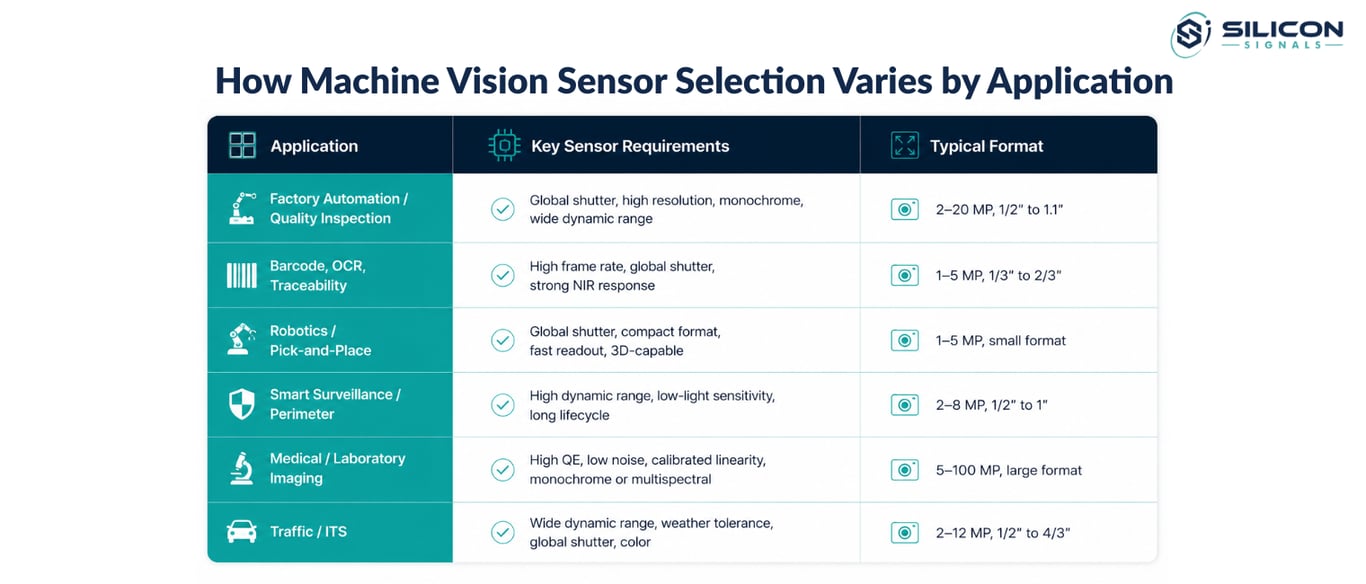

How Machine Vision Sensor Selection Varies by Application
Factory Automation and Quality Inspection Systems
Production line inspection drives the majority of industrial camera sensor selection decisions globally. The combination of tight defect detection thresholds, high line speeds, and 24/7 uptime requirements creates the most demanding profile for machine vision sensor selection. Global shutter CMOS sensors in the 2 MP to 20 MP range dominate this segment. Frame rates from 30 FPS to 200 FPS are typical, depending on line speed and part density.
Barcode, OCR, and Traceability Applications
Barcode reading and optical character recognition for traceability require high contrast imaging of fine features data matrix codes with 0.1mm cell sizes, or printed serial numbers at 6-point font. Machine vision sensor selection for these applications prioritizes spatial resolution and sharpness over dynamic range. NIR illumination is common because it penetrates plastic packaging and reduces specular reflections. A global shutter sensor with strong NIR quantum efficiency above 40% at 850 nm serves this segment well.
Need help with industrial camera sensor selection?
Robotics and Pick-and-Place Systems
Pick-and-place vision systems in collaborative and industrial robots require fast frame rates to support real-time pose estimation and path planning. The sensor must deliver consistent, low-latency images under variable ambient lighting as the robot arm moves. Global shutter is mandatory. Form factor is often constrained by the mounting geometry near the end effector. Industrial camera sensor selection for robotics also considers the sensor’s compatibility with 3D imaging modalities structured light, time-of-flight, or stereo when depth information is required for bin picking.
Smart Surveillance and Perimeter Monitoring
Industrial perimeter monitoring and smart surveillance differ from consumer security cameras in their reliability and longevity requirements. Machine vision sensor selection for these systems prioritizes wide dynamic range (the ability to image both full sunlight and deep shadow in the same frame), sensitivity at low lux levels for night operation, and sensor lifecycle of five years or more. Many deployments incorporate AI inference at the edge, which adds processing constraints to the camera design alongside the sensor specification.
Medical and Laboratory Imaging Equipment
Medical imaging imposes the most demanding specifications in industrial camera sensor selection. Quantum efficiency, readout noise, linearity, and calibration stability are all specified to tolerances that production vision sensors do not meet. Scientific CMOS (sCMOS) sensors with back-side illumination (BSI) architecture, cooled to reduce dark current, are standard in fluorescence microscopy and flow cytometry. Pixel sizes of 5 to 11 microns, full-well capacities above 50,000 electrons, and readout noise below 2 electrons rms characterize this tier of machine vision sensor selection.
Traffic Monitoring and Intelligent Transportation Systems
Traffic and ITS cameras must function across the full range of outdoor conditions direct sunlight, headlight glare at night, fog, rain, and temperature swings from -40°C to +70°C. Machine vision sensor selection for ITS prioritizes wide dynamic range (90 dB or greater for license plate capture in mixed lighting), color imaging for vehicle classification, and ruggedized packaging. Sensors used in ITS applications typically undergo more rigorous reliability qualification than standard industrial grades.
Conclusion
Industrial camera sensor selection is an engineering discipline, not a procurement decision. Resolution, shutter type, pixel size, dynamic range, frame rate, spectral response, and environmental tolerance are interconnected parameters optimizing one without considering the others leads to system-level failure. The most successful machine vision deployments treat sensor selection as the first, highest-leverage design decision in the camera architecture process.
Getting this right requires deep knowledge of both imaging physics and the target application environment. For organizations building custom industrial cameras, this is precisely where Silicon Signals operates. Silicon Signals is a camera design company specializing in end-to-end camera development for industrial and embedded vision applications from sensor selection and optical design through board-level integration, firmware, and production readiness. If your team is navigating machine vision sensor selection for a new product program and needs a hardware partner with depth in embedded camera engineering, Silicon Signals is worth discussing with if you’re developing a machine vision product and need guidance on sensor selection and camera architecture.
