Introduction
Camera interface selection determines whether an embedded product hits its speed, power, and cost targets or falls short on all three at once. The MIPI CSI-2 camera module market was valued at 2.85 billion dollars in 2024 and is projected to reach 8.12 billion dollars by 2033, growing at a CAGR of 12.4 percent, according to Research Intelo.
This is an indication of a general trend in embedded cameras whereby OEMs are now choosing MIPI camera modules over USB camera modules due to increased requirements for higher integration and reduced power consumption.
What Is a MIPI Camera Module?
A MIPI camera module is an image sensor assembly built around the Mobile Industry Processor Interface standard, designed to connect directly to a system on chip inside embedded cameras. Unlike general purpose interfaces, a MIPI camera module routes raw pixel data straight into the processor’s image signal processor, cutting out layers of protocol overhead. This direct path is why product engineers building compact, power sensitive hardware default to a MIPI camera module rather than a USB camera module.
Understanding the MIPI CSI-2 Interface
Camera Serial Interface, also known as MIPI CSI-2, is responsible for defining the way in which pixels get transmitted from the sensor to the processor using fast differential signaling over one or multiple data lanes. The addition of an extra lane increases bandwidth, which allows a MIPI camera module to accommodate higher resolutions and frame rates.
The interface also supports virtual channels, allowing multiple sensors to share a single physical connection in multi camera embedded cameras designs.
How MIPI Camera Modules Connect to Embedded Processors
A MIPI camera module attaches to the SoC through a dedicated CSI-2 receiver block that most application processors and microcontrollers already include on the silicon. Having a built-in receiver ensures that there is no need for a dedicated controller to perform decoding on the incoming video because the processor is not required to use another component. Since the connection is already inbuilt in the chip, a MIPI camera module has low signal latency because there is no need for a bridge in between.
Common Applications of MIPI Camera Modules
MIPI cameras modules are used by engineers for drones, handheld scanners, endoscopes, and industrial sensors with limited board space and power budget. Automotive cabin monitoring systems rely on a MIPI camera module because the short cable runs and low latency suit safety critical detection tasks. Wearable devices and smart glasses also depend on a MIPI camera module since the interface fits within tight thermal and power envelopes that embedded cameras must respect.

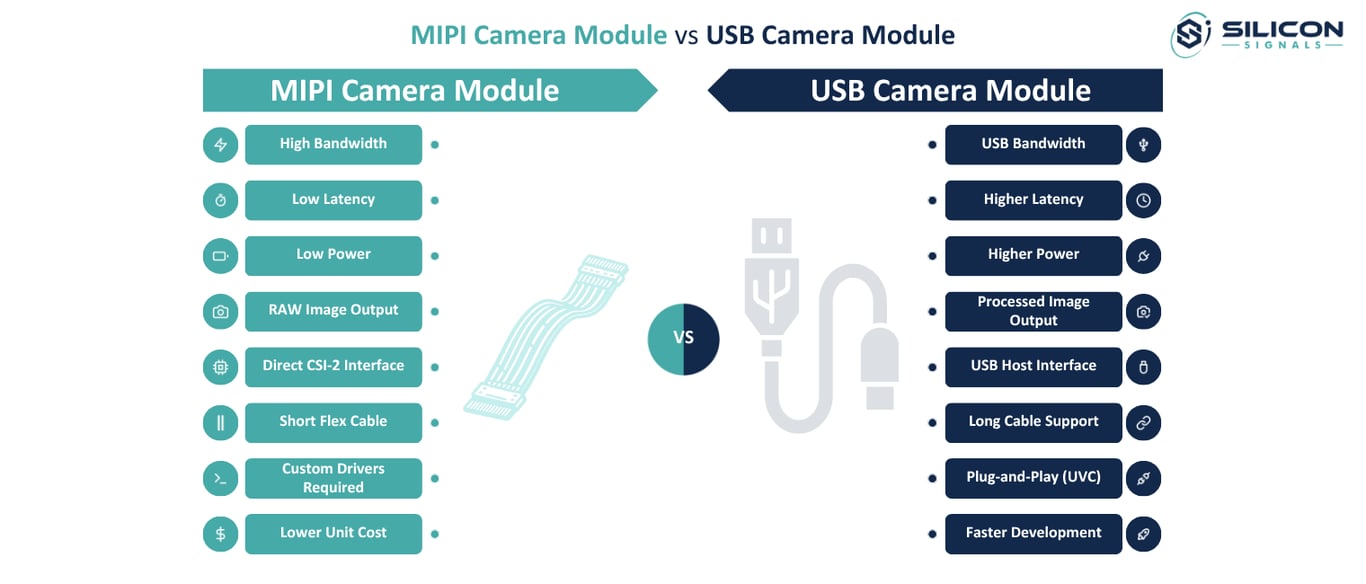

MIPI Camera Module vs USB Camera Module: A Detailed Comparison
Both can capture images, but there are significant differences in performance, latency, and embedded usability between the two.
Data Transfer Speed and Bandwidth
A MIPI camera module using multiple data lanes can exceed several gigabits per second of raw throughput, supporting high resolution sensors without compression artifacts. A USB camera module depends on the USB generation in use, and older USB 2.0 implementations bottleneck resolution and frame rate well below what a comparable MIPI camera module achieves.
Image Latency and Real-Time Performance
Because the MIPI camera module transfers raw pixel data directly to the host ISP, the frame latency remains low in the milliseconds. This is especially important in the case of real-time embedded cameras. The USB camera module adds some latency due to the presence of onboard encoding and packetization into USB packets.
Choosing Between MIPI and USB for Your Next Product?
Power Consumption
Compared to USB cameras, MIPI-based designs consume less power because image processing is handled by the host SoC instead of dedicated hardware on the camera itself.
Image Quality and Resolution Support
A MIPI camera module paired with a capable SoC ISP can support raw Bayer output and advanced tuning for high dynamic range and low light performance. With a USB camera module, the processor on board does processing prior to sending the image to the host, thus leaving the OEM little room for customizing color science and noise management.
Integration with Embedded SoCs
A MIPI camera module connects directly to the CSI-2 receiver already built into most embedded processors, avoiding the need for a bridge chip. A USB camera requires a USB host controller and often a hub if multiple cameras are needed, adding components that a MIPI camera module design does not require.
Cable Length and Hardware Design
A MIPI camera module performs well when used on short flex cables that usually should be less than 30 cm in length without the use of repeaters or SerDes bridge in the embedded cameras. On the other hand, a USB camera can be used on longer cables, which are usually several meters long.
Software Development and Driver Support
A MIPI camera module typically necessitates a specialized Linux kernel driver, specific to the camera sensor and SoC combination, which in turn implies knowledge of embedded software development. The USB camera module uses standard drivers called UVC (Universal Video Class), and these work right out of the box, thus reducing efforts on the software side.
Cost Considerations for OEM Products
The MIPI camera module is generally cheaper per unit because there is less silicon on board and all calculations have to be done by the host SoC. USB camera modules, on the other hand, are expensive per unit, because they include both the ISP and a controller, but save on NRE.
Why OEMs Prefer MIPI Camera Modules
As the requirement of embedded vision camera technology increases, MIPI camera modules are being selected by OEMs because of their enhanced performance, flexibility, and reduced power consumption.
Better Performance for AI and Edge Vision
Edge-AI workloads demand uninterrupted and low-latency frame delivery, which is achieved by MIPI camera modules by providing raw pixel streams directly to the neural processing unit without any encode-decode cycle in between. This direct data path lets embedded cameras run object detection and classification models with less delay than a USB can offer. OEMs building AI enabled products consistently choose a MIPI camera module because inference accuracy depends on receiving clean, uncompressed frames.
Direct ISP Integration for Superior Image Processing
In the case of the MIPI camera module, since the host SoC gets the information from the camera module directly, the Image Signal Processor will be capable of regulating settings such as exposure, white balance, and noise reduction. This level of control lets OEMs differentiate their embedded cameras through custom image tuning rather than accepting whatever a USB camera module’s fixed pipeline produces. Product teams that need brand specific color output or specialized low light performance rely on this MIPI camera module advantage.
Lower Power Consumption for Battery-Powered Devices
The MIPI camera bypasses the processing done in the onboard stage by the USB connector, which leads to lower current requirements for the portable embedded camera. The battery-operated devices such as body-worn cameras, unmanned aerial vehicles (drones), and barcode scanners rely on such power efficiency to achieve runtime goals. The power gap between a both modules becomes especially significant in devices that stream video continuously.
Compact Design for Space-Constrained Products
A MIPI camera module comes with a board without a controller and a flex connection, thus taking up much less space than the bulky USB that has its controller. The small size of such a camera is what makes it possible for OEMs to fit cameras in wearable devices, endoscopes, and even small drones. It is for that reason that OEMs opt for a MIPI camera module when designing slim and small devices.
Easier Customization for Product Development
This is because the raw sensor registers that are exposed by the MIPI camera module provide enough room for engineers to calibrate the exposure curves, gain values, and output format according to specific product needs. The interface has many configurations locked in firmware, which reduces the amount of customizability offered to the OEM. The ability to do so is one of the reasons why product design teams prefer MIPI camera modules for embedded cameras.
Long-Term Scalability Across Product Families
A MIPI camera module design can often be reused across multiple products in a family by swapping sensors while keeping the same CSI-2 interface and driver framework. This modularity reduces redesign effort compared to migrating a USB to a new sensor with different onboard processing requirements. OEMs planning multi generation embedded cameras platforms favor a camera hardware design for this long term engineering efficiency.

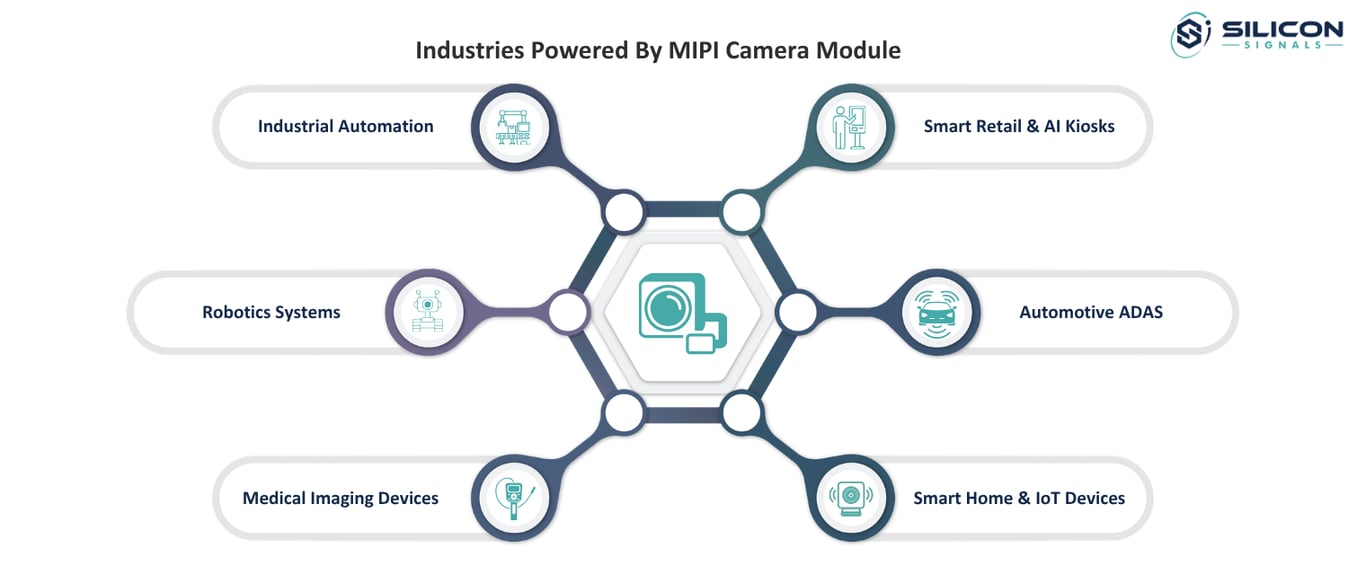

Industries That Benefit Most from MIPI Camera Modules
From industrial automation to medical imaging, many industries rely on MIPI camera modules to build reliable, high-performance embedded camera system.
Industrial Automation and Machine Vision
Factory automation systems use a camera to feed high frame rate images into inspection algorithms that catch defects before products leave the line. Latency is crucial because the conveyor line will not stop for slower image analysis, and any delay directly results in defects not being found.
To achieve reliable inspection accuracy, it’s equally important to choose the right camera sensor for industrial vision based on factors such as resolution, shutter type, frame rate, and lighting conditions. A bottling plant using a MIPI camera module for label alignment checks can process thousands of units per hour without introducing bottlenecks..
Medical Imaging Devices
Portable diagnostic tools and endoscopic cameras depend on a camera to deliver high resolution images in compact housings that fit inside the human body or a handheld unit. Power efficiency matters here because many of these devices run on battery power during procedures that can last over an hour. A capsule endoscope built around a MIPI camera module can capture detailed gastrointestinal images while operating within strict size and power constraints.
Robotics and Autonomous Systems
Mobile robots and autonomous platforms rely on a camera to feed multiple simultaneous video streams into onboard perception systems for navigation and obstacle avoidance. The low latency of MIPI matters because a robot moving at speed needs fresh visual data to react to obstacles in real time. A warehouse picking robot using a camera module can identify and grasp items accurately while moving continuously through aisles.
Smart Retail and AI Kiosks
Self-service checkout stations and intelligent shelves employ a camera in order to achieve real-time product recognition without a perceivable delay from the moment the scanning process starts until it ends. The compact design of the camera is important for retail units where space behind the panel is restricted. A smart vending machine using a MIPI camera module can verify item selection instantly as a customer reaches for a product.
Automotive ADAS and Driver Monitoring
Driver monitoring systems and advanced driver assistance features depend on a camera to detect drowsiness, distraction, or lane departure with minimal processing delay. Automotive designs often extend MIPI over longer distances using SerDes bridges to route signals from the camera to a central compute unit. A driver monitoring camera built on a MIPI camera module can track eye movement and head position continuously without adding noticeable latency to safety alerts.
Smart Home and IoT Devices
The video doorbell, security camera, and smart display have the camera module incorporated in them to help reduce power consumption. Small size is important because these devices must be able to fit into the door frame or small enclosure without camera housing. A battery-operated doorbell camera designed using the MIPI camera module can last for a few months before charging.
Not Sure Which Camera Interface Fits Your Application?
How to Select the Right MIPI Camera Module for Your Embedded Project
Selecting the ideal MIPI camera module requires evaluating your processor, image sensor, optics, software ecosystem, and application-specific requirements.
Choose the Right Image Sensor
Sensor selection starts with resolution, frame rate, and low light performance requirements specific to the embedded cameras application being developed. A MIPI camera module built around a global shutter sensor suits fast moving subjects, while a rolling shutter sensor works well for static or slow scenes. Matching sensor specifications to actual use case requirements avoids overpaying for capability the product will never use.
Match Camera Specifications with Your SoC
The selected MIPI camera module needs to be compatible with the number of CSI-2 lanes and MIPI version available for the targeted SoC to ensure there will be no problem regarding bandwidth. There are some processors that work on only two lanes, which means that whatever the capability of the sensor might be, the resolution and frame rate would be limited to only two lanes.
Evaluate Lens and Field of View
The selection of the lens impacts the performance of the field of view, the depth of field, and the level of distortion, all of which impact the performance of the MIPI camera module. Wide-angle lenses are good for use in surveillance and robot cameras, whereas the narrow-field-of-view lenses are appropriate for use in barcode scanners and precision inspections.
Consider ISP Support and Driver Availability
A MIPI Camera Module requires a functional driver on Linux or RTOS on the target SoC, and having such a driver is what usually dictates the development time frame rather than any other factor related to hardware. Some sensors and SoCs may have drivers ready but other combinations may need a custom driver developed for them. Checking driver maturity before committing to a MIPI camera module reduces the risk of unexpected engineering delays.
Work with an Experienced Embedded Camera Partner
There are various issues surrounding the selection of a MIPI camera module in terms of sensors, image signal processor (ISP) programming, driver development, and mechanical integration that require expertise to handle well. Engaging experts who have helped launch several embedded cameras helps avoid any expensive redesigns at later stages of development. Experience in MIPI designs allows one to identify potential mistakes early.
Conclusion
Choosing between a MIPI camera module and a USB module comes down to matching interface characteristics to product requirements around power, latency, and integration depth. For embedded cameras where compact size and efficiency matter, a MIPI camera module remains the stronger long term choice. Silicon Signals is a camera design company specializing in camera development, helping OEMs select sensors, tune ISPs, and bring MIPI based embedded cameras to production faster.
